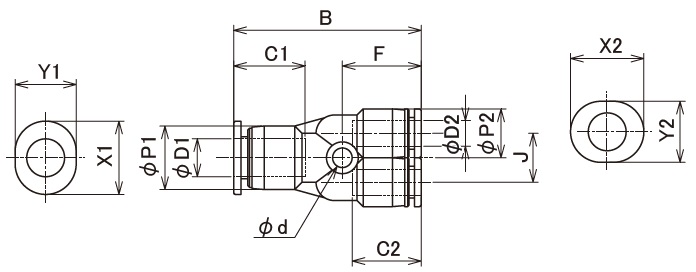

| Part No | Model No | Applicable tube outer diameter φD1 |
Applicable tube outer diameter φD2 |
φP1 | φP2 | φd | F | J | C1 | C2 | B | X1 | X2 | Y1 | Y2 | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16002246 | OPW 0403C | 4 | 3 | 8 | 8 | 3.2 | 13.4 | 8 | 11.5 | 9.5 | 30 | 10 | 8 | 7 | 6 | 2.5 | 0.9 | 10 | 100 |
| 16002247 | OPW 0604C | 6 | 4 | 10.5 | 8 | 3.2 | 13.6 | 10.5 | 12.5 | 11.5 | 31.5 | 12 | 10 | 10 | 8 | 3 | 1.8 | 10 | 50 |
