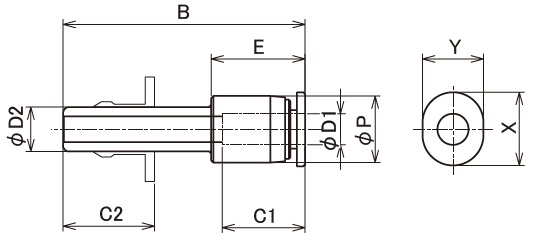

| Part No | Model No | Applicable tube outer diameter φD1 |
Applicable tube outer diameter φD2 |
φP | φd | C1 | C2 | E | B | X | Y | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16002241 | OPGJ 0403C | 3 | 4 | 6.5 | 3.2 | 9.5 | 11.5 | 11.2 | 29.2 | 7 | 6 | 2.5 | 0.9 | 10 | 100 |
| 16002242 | OPGJ 0604C | 4 | 6 | 9 | 3.2 | 11.5 | 12.5 | 13.2 | 33.2 | 10 | 8 | 3 | 1.8 | 10 | 50 |
