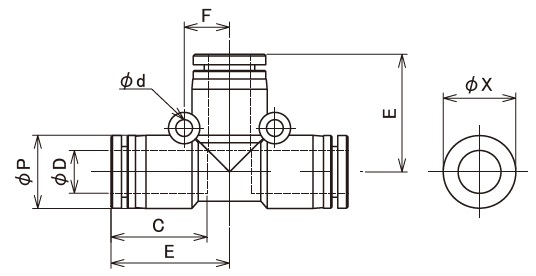

| Part No | Model No | Applicable tube outer diameter φD |
φP | B | C | F | φd | J | F | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000661 | OPY 04 | 4 | 10 | 35.9 | 16 | 6 | 2.2 | 9.6 | 15.2 | 10 | 3 | 7 | 10 | 100 |
| 16000662 | OPY 06 | 6 | 12.4 | 39.4 | 17 | 8 | 3.2 | 12 | 17 | 12 | 5 | 9.1 | 10 | 50 |
| 16000663 | OPY 08 | 8 | 14.4 | 43.5 | 18.5 | 10 | 4.2 | 14 | 17.3 | 14 | 7 | 13 | 10 | 50 |
| 16000664 | OPY 10 | 10 | 17.6 | 50 | 21 | 12 | 4.2 | 18 | 21.5 | 17 | 8 | 22.6 | 5 | 25 |
| 16000665 | OPY 12 | 12 | 21.2 | 53 | 22.5 | 14 | 4.2 | 20.8 | 21 | 21 | 10 | 30.5 | 5 | 20 |
