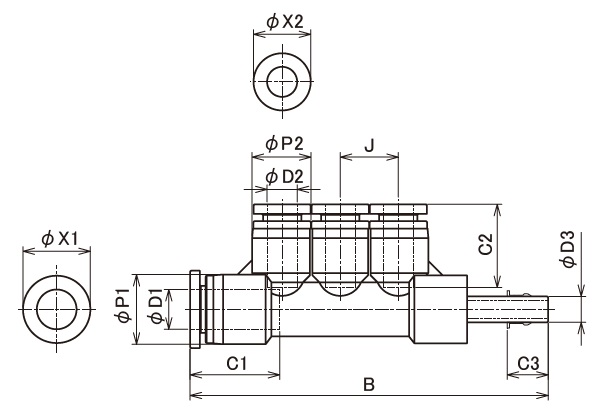

| Part No | Model No | Applicable tube outer diameter φD1 |
Applicable tube outer diameter φD2 |
Applicable tube outer diameter φD3 |
B | C1 | C2 | C3 | P1 | P2 | J | F1 | F2 | φd | φX1 | φX2 |
Oriffice |
Weight(g) | Qty per bag |
Qty per box |
| 16000931 | OPKJ 0604 | 6 | 4 | 6 | 75.7 | 17 | 16 | 17 | 12 | 10.4 | 10 | 8 | 34 | 3.2 | 12 | 10 | 3 | 12.9 | 5 | 25 |
| 16000932 | OPKJ 0804 | 8 | 4 | 8 | 79.9 | 18.5 | 16 | 18.5 | 14.4 | 10.4 | 10 | 9 | 34 | 3.2 | 14 | 10 | 3 | 15.8 | 5 | 25 |
| 16000933 | OPKJ 0806 | 8 | 6 | 8 | 82.2 | 18.5 | 17 | 18.5 | 14.4 | 12.4 | 12 | 9 | 40 | 3.2 | 14 | 12 | 5 | 17.3 | 5 | 25 |
| 16000934 | OPKJ 1006 | 10 | 8 | 10 | 102.6 | 21 | 21 | 21 | 17.6 | 14.4 | 14 | 10.5 | 42 | 4.2 | 17 | 14 | 7 | 27.6 | 5 | 20 |
