Stainless Steel 3 Way L-port Ball Valve Type 1000
  • Stainless Steel 3 Way L-port Ball Valve Type 1000

Stainless Steel 3 Way L-port Ball Valve Type 1000

Tổng quan

Part No Model No

Thread
(Rc)

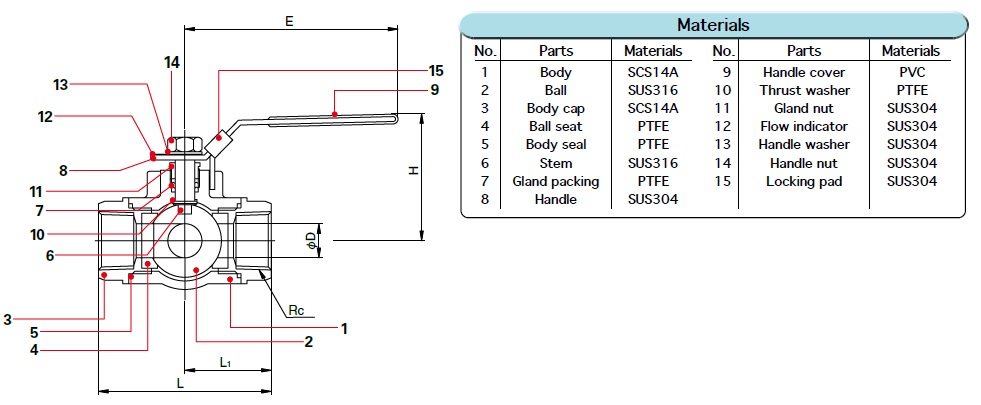

 φD L L1 H
01100701 V32L-02 1/4 11.2 75 37.5 53
01100702 V32L-03 3/8 12.7 75 37.5 53
01100703 V32L-04 1/2 12.7 75 37.5 53
01100704 V32L-06 3/4 16 85 42.5 64
01100705 V32L-08 1" 20 103 50 66
01100706 V32L-10 1"1/4 25 115 57.5 79
01100707 V32L-12 1"1/2 32 125 62.5 83
01100708 V32L-16 2" 40 148 75 94
