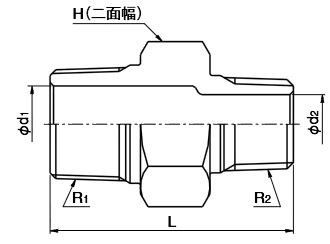

| Part No | Model No |
Thread (R1xR2) |
L | H | φd1 | φd2 | Qty per Iner box |
Qty per outer box |
| 04101601 | VRN-0201 | 1/4x1/8 | 33 | 17 | 8.5 | 5 | 60 | 240 |
| 04101602 | VRN-0301 | 3/8x1/8 | 34 | 21 | 11 | 5 | 40 | 160 |
| 04101603 | VRN-0302 | 3/8x1/4 | 35 | 21 | 11 | 8.5 | 40 | 160 |
| 04101604 | VRN-0401 | 1/2x1/8 | 37 | 26 | 15 | 5 | 25 | 100 |
| 04101605 | VRN-0402 | 1/2x1/4 | 38 | 26 | 15 | 8.5 | 25 | 100 |
| 04101606 | VRN-0403 | 1/2x3/8 | 39 | 26 | 15 | 11 | 25 | 100 |
| 04101607 | VRN-0601 | 3/4x1/8 | 40 | 31 | 19 | 5 | 15 | 60 |
| 04101608 | VRN-0602 | 3/4x1/4 | 41 | 31 | 19 | 8.5 | 15 | 60 |
| 04101609 | VRN-0603 | 3/4x3/8 | 42 | 31 | 19 | 11 | 15 | 60 |
| 04101610 | VRN-0604 | 3/4xx1/2 | 45 | 31 | 19 | 15 | 15 | 60 |
| 04101611 | VRN-0802 | 1"×1/4 | 44 | 38 | 26 | 8.5 | 20 | 80 |
| 04101612 | VRN-0803 | 1"×3/8 | 45 | 38 | 26 | 11 | 20 | 80 |
| 04101613 | VRN-0804 | 1"×1/2 | 48 | 38 | 26 | 15 | 20 | 80 |
| 04101614 | VRN-0806 | 1"×3/4 | 50 | 38 | 26 | 19 | 20 | 80 |
| 04101615 | VRN-1003 | 1"1/4×x3/8 | 47 | 46 | 33.5 | 11 | 15 | 60 |
| 04101616 | VRN-1004 | 1"1/4×1/2 | 50 | 46 | 33.5 | 15 | 15 | 60 |
| 04101617 | VRN-1006 | 1"1/4×3/4 | 52 | 46 | 33.5 | 19 | 15 | 60 |
| 04101618 | VRN-1008 | 1"1/4×1" | 54 | 46 | 33.5 | 26 | 12 | 48 |
| 04101619 | VRN-1204 | 1"1/2×1/2 | 53 | 53 | 39 | 15 | 12 | 48 |
| 04101620 | VRN-1206 | 1"1/2×3/4 | 55 | 53 | 39 | 19 | 12 | 48 |
| 04101621 | VRN-1208 | 1"1/2×1" | 57 | 53 | 39 | 26 | 12 | 48 |
| 04101622 | VRN-1210 | 1"1/2×1"1/4 | 59 | 53 | 39 | 33.5 | 9 | 36 |
| 04101623 | VRN-1606 | 2"x3/4 | 58 | 63 | 50 | 19 | 9 | 36 |
| 04101624 | VRN-1608 | 2"x1" | 60 | 63 | 50 | 26 | 9 | 36 |
| 04101625 | VRN-1610 | 2"x1"1/4 | 62 | 63 | 50 | 33.5 | 9 | 36 |
| 04101626 | VRN-1612 | 2"x1"1/2 | 63 | 63 | 50 | 39 | 9 | 36 |
