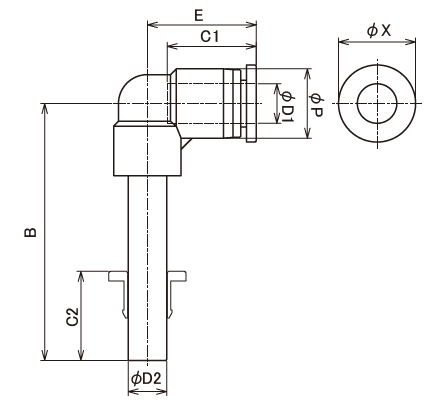

| Part No | Model No | Applicable tube outer diameter φD1 |
Outside |
φP |
B | C1 | C2 | E | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000821 | OPLGJ 0604 | 4 | 4 | 10.4 | 33.3 | 17 | 16 | 18.7 | 10 | 3 | 5.5 | 10 | 100 |
| 16000822 | OPLGJ 0806 | 6 | 6 | 12.8 | 41.3 | 18.5 | 17 | 21.1 | 12 | 5 | 7 | 10 | 50 |
| 16000823 | OPLGJ 0810 | 8 | 8 | 14.4 | 43.6 | 21 | 18.5 | 22.8 | 14 | 7 | 11 | 10 | 50 |
| 16000824 | OPLGJ 1012 | 10 | 10 | 17.6 | 52 | 23.5 | 21 | 26.1 | 17 | 8 | 17 | 5 | 25 |
