Reduced Bore Wing Handle Ball Valve equivalent of Type 600 Type 304
  • Reduced Bore Wing Handle Ball Valve equivalent of Type 600 Type 304

Reduced Bore Wing Handle Ball Valve equivalent of Type 600 Type 304

Tổng quan

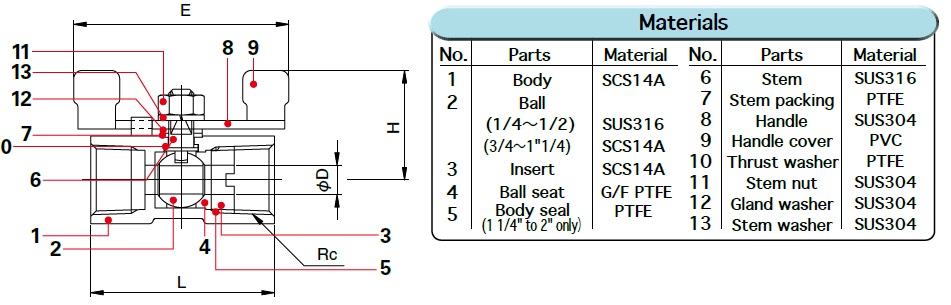

Part No Model No

Thread
(Rp)

 φD L H E
1100211 V03W-304-02 1/4 5 26 51.5 39
1100212 V03W-304-03 3/8 7 28 54.5 44
1100213 V03W-304-04 1/2 9.2 32.5 57.5 56.5
1100214 V03W-304-06 3/4 12.5 36 57.5 59
1100215 V03W-304-08 1" 15 51.5 73 71
1100216 V03W-304-10 2" 20 56.5 73 78
