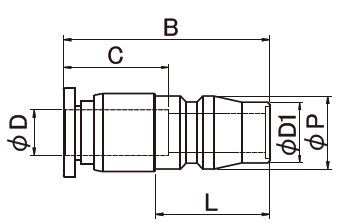

| Part No | Model No | Applicable tube outer diameter φD |
D1 | P | B | L | C | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000751 | OPCP 04 | 4 | 10.9 | 13.1 | 32.6 | 20.5 | 16 | 3 | 20 | 10 | 100 |
| 16000752 | OPCP 06 | 6 | 10.9 | 13.1 | 33.5 | 20.5 | 17 | 5 | 19 | 10 | 100 |
| 16000753 | OPCP 08 | 8 | 10.9 | 13.1 | 37 | 20.5 | 18.5 | 7 | 20 | 10 | 100 |
| 16000754 | OPCP 10 | 10 | 10.9 | 13.1 | 44 | 20.5 | 21 | 8 | 29 | 10 | 50 |
| 16000755 | OPCP 12 | 12 | 10.9 | 13.1 | 47.2 | 20.5 | 22.5 | 10 | 44 | 10 | 50 |
| 16000756 | OPCP 16 | 16 | 10.9 | 13.1 | 50.2 | 20.5 | 25.5 | 13 | 52 | 5 | 25 |
