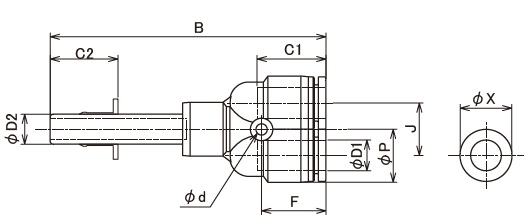

| Part No | Model No | Outside diameter of plug-in φD1 |
Outside diameter of plug-in φD2 |
φP | B | C1 | C2 | φd | F | J | φX |
Oriffice |
Weight(g) | Qty per bag |
Qty per box |
| 16000861 | OPYJ 04 | 4 | 4 | 10.4 | 48.8 | 16 | 16 | 2.2 | 15.2 | 9.6 | 10 | 3 | 7.2 | 10 | 100 |
| 16000862 | OPYJ 06 | 6 | 6 | 12.4 | 54.7 | 17 | 17 | 3.2 | 16.9 | 12 | 12 | 5 | 8.5 | 10 | 50 |
| 16000863 | OPYJ 08 | 8 | 8 | 14.4 | 60.8 | 18.5 | 18.5 | 3.2 | 20.2 | 14 | 14 | 7 | 12.3 | 10 | 50 |
| 16000864 | OPYJ 10 | 10 | 10 | 17.6 | 71.2 | 21 | 21 | 4.2 | 21.5 | 18 | 17 | 8 | 23.1 | 5 | 25 |
| 16000865 | OPYJ 12 | 12 | 12 | 21.2 | 75.7 | 22.5 | 22.5 | 4.2 | 21.5 | 20.8 | 21 | 10 | 30.8 | 5 | 20 |
