Male branch tee
  • Male branch tee

Male branch tee

Tổng quan

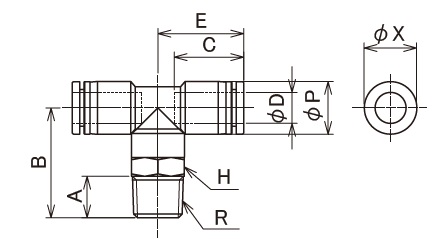

Part No Model No Applicable
tube outer
diameterφD		 Thread
(R)		 φP A B C E H φX Orifice
Diameter		 Weight(g) Qty per
bag		 Qty per
box
16000201 OPT 04M5 4 M5×0.8 10.4 5.5 22.1 16 18.5 10 10 2 11.1 10 100
16000202 OPT 04M6 4 M6×1.0 10.4 6.5 23.1 16 18.5 10 10 2 11.1 10 100
16000203 OPT 0401 4 1/8 10.4 8 24.6 16 18.5 10 10 2.6 13 10 100
16000204 OPT 0402 4 1/4 10.4 11 27.9 16 18.5 14 10 2.6 19.7 10 50
16000205 OPT 06M5 6 M5×0.8 12.4 5.5 23 17 20.4 12 12 2 13.7 10 50
16000206 OPT 06M6 6 M6×1.0 12.4 6.5 24.5 17 20.4 12 12 3 13.7 10 50
16000207 OPT 0601 6 1/8 12.4 8 25 17 20.4 12 12 4.6 15.3 10 50
16000208 OPT 0602 6 1/4 12.4 11 29 17 20.4 14 12 4.6 23.6 10 50
16000209 OPT 0603 6 3/8 12.4 12 31 17 20.4 17 12 4.6 35 10 50
16000210 OPT 0801 8 1/8 14.4 8 25.5 18.5 22.8 14 14 5 19.6 10 50
16000211 OPT 0802 8 1/4 14.4 11 29.5 18.5 22.8 14 14 6 26.6 10 50
16000212 OPT 0803 8 3/8 14.4 12 30.5 18.5 22.8 17 14 5 40.2 5 25
16000213 OPT 1001 10 1/8 17.6 8 32 21 26 17 17 6 25.6 5 25
16000214 OPT 1002 10 1/4 17.6 11 35 21 26 17 17 8 37.9 5 25
16000215 OPT 1003 10 3/8 17.6 12 36 21 26 17 17 8 46.7 5 25
16000216 OPT 1004 10 1/2 17.6 15 39 21 26 21 17 8 59.3 5 25
16000217 OPT 1202 12 1/4 21 11 37 22.5 29 21 21 8 52.3 5 20
16000218 OPT 1203 12 3/8 21 12 38 22.5 29 21 21 9 56.1 5 20
16000219 OPT 1202 12 1/2 21 15 41 22.5 29 21 21 9 67 5 20
16000220 OPT 1603 16 3/8 25.6 12 43.3 24.8 33.3 24 24 10 90.4 4 12
16000221 OPT 1604 16 1/2 25.6 15 47.3 24.8 33.1 24 24 13 98.4 4 12
