  • Hexagon Socket Head Universal Male Elbow
Hexagon Socket Head Universal Male Elbow
  • Hexagon Socket Head Universal Male Elbow

Hexagon Socket Head Universal Male Elbow

Tổng quan

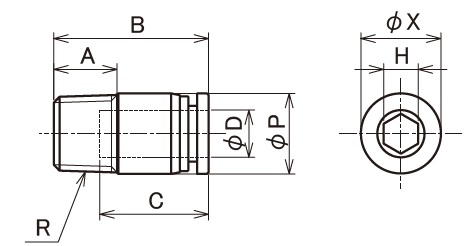

Part No Model No Applicable
tube outer
diameterφD		 Thread
(R)		 φP A B C H φX Orifice
Diameter		 Weight(g) Qty per
bag		 Qty per
box
16000271 OPOC 04M5 4 M5x0.8 10 5.5 22.2 16 2 10 2 6.3 10 100
16000272 OPOC 04M6 4 M5x1.0 10 6.5 22.2 16 3 10 3 6.3 10 100
16000273 OPOC 0401 4 1/8 10 8 22.2 16 3 10 3 6.9 10 100
16000274 OPOC 06M5 6 M5x0.8 12 5.5 24.7 17 2 12 2 9.3 10 100
16000275 OPOC 06M6 6 M6x1.0 12 6.5 25.7 17 3 12 3 9.5 10 100
16000276 OPOC 0601 6 1/8 111 8 23.2 17 4 12 4 8.2 10 100
16000277 OPOC 0602 6 1/4 14 11 25.2 17 4 12 4 16.2 10 100
16000278 OPOC 0801 8 1/8 14 8 28.5 18.5 4 14 4 14.3 10 100
16000279 OPOC 0802  8 1/4 14 11 27 18.5 6 14 6 17.6 10 100
16000280 OPOC 0803 8 3/8 17 12 25.3 18.5 6 14 6 22.9 10 50
16000281 OPOC 1002  10 1/4 17 11 34 21 6 17 6 24.2 10 50
16000282 OPOC 1003 10 3/8 17 12 30 21 6 17 6 23 10 50
16000283 OPOC 1004 10 1/2 21 15 29.5 21 6 17 6 43.4 10 50
160005284 OPOC 1203 12 3/8 21 12 31.1 22.5 8 21 8 31.9 10 50
16000285 OPOC 1204 12 1/2 21 15 33.1 22.5 8 21 8 44.5 5 25
