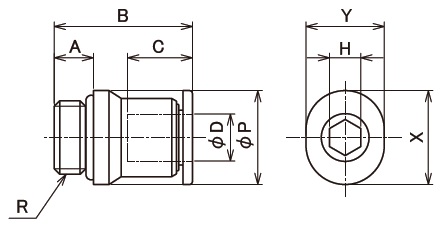

| Part No | Model No | Applicable tube outer diameter φD |
Thread (R) | C | A | B | H | P | X | Y | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16002164 | OPOC 04M3C | 4 | M3x0.5 | 11.5 | 3 | 18 | 1.5 | 8 | 10 | 8 | 1.2 | 3.4 | 10 | 100 |
| 16002165 | OPOC 04M5C | 4 | M5x0.8 | 11.5 | 3.5 | 18.7 | 2.5 | 8 | 10 | 8 | 2 | 3.8 | 10 | 100 |
| 16002166 | OPO 04M6C | 4 | M6x1.0 | 11.5 | 4.5 | 19.7 | 3 | 8 | 10 | 8 | 3 | 4 | 10 | 100 |
| 16002167 | OPOC 0401C | 4 | 1/8 | 11.5 | 8 | 15.8 | 3 | 10 | 10 | 8 | 3 | 5.5 | 10 | 50 |
| 16002168 | OPOC 06M5C | 6 | M5x0.8 | 12.5 | 3.5 | 17.3 | 2.5 | 10 | 12 | 10 | 2 | 3.9 | 10 | 100 |
| 16002169 | OPOC 06M6C | 6 | M6x1.0 | 12.5 | 4.5 | 18.3 | 3 | 10 | 12 | 10 | 3 | 4.1 | 10 | 100 |
| 16002170 | OPOC 0601C | 6 | 1/8 | 12.5 | 8 | 16.9 | 4 | 10 | 12 | 10 | 4.5 | 4.5 | 10 | 50 |
