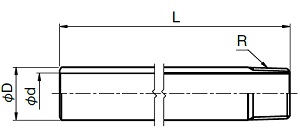

| Part No | Model No |
Thread RxL |
φD | φd | Qty per Iner box |
Qty per outer box |
| 04102041 | VWLN-01050 | 1/8x50 | 10.5 | 7.1 | 200 | 800 |
| 04102042 | VWLN-01075 | 1/8x75 | 10.5 | 7.1 | 200 | 800 |
| 04102043 | VWLN-01100 | 1/8x100 | 10.5 | 7.1 | 140 | 560 |
| 04102044 | VWLN-01125 | 1/8x125 | 10.5 | 7.1 | 100 | 400 |
| 04102045 | VWLN-01150 | 1/8x150 | 10.5 | 7.1 | 100 | 400 |
| 04102046 | VWLN-01200 | 1/8x200 | 10.5 | 7.1 | - | 160 |
| 04102048 | VWLN-02050 | 1/4x50 | 13.8 | 9.8 | 140 | 560 |
| 04102049 | VWLN-02075 | 1/4x75 | 13.8 | 9.8 | 100 | 400 |
| 004102050 | VWLN-02100 | 1/4x100 | 13.8 | 9.8 | 80 | 320 |
| 004102051 | VWLN-02125 | 1/4x125 | 13.8 | 9.8 | 40 | 160 |
| 004102052 | VWLN-02150 | 1/4x150 | 13.8 | 9.8 | 40 | 160 |
| 004102053 | VWLN-02200 | 1/4x200 | 13.8 | 9.8 | - | 100 |
| 004102055 | VWLN-03050 | 3/8×50 | 17.3 | 13.3 | 100 | 400 |
| 004102056 | VWLN-03075 | 3/8x75 | 17.3 | 13.3 | 60 | 240 |
| 004102057 | VWLN-03100 | 3/8x100 | 17.3 | 13.3 | 40 | 160 |
| 004102058 | VWLN-03125 | 3/8x125 | 17.3 | 13.3 | 40 | 160 |
| 004102059 | VWLN-03150 | 3/8x150 | 17.3 | 13.3 | 40 | 160 |
| 004102060 | VWLN-03200 | 3/8x200 | 17.3 | 13.3 | - | 60 |
| 004102062 | VWLN-04050 | 1/2x50 | 21.7 | 16.7 | 60 | 240 |
| 004102063 | VWLN-04075 | 1/2x75 | 21.7 | 16.7 | 40 | 160 |
| 004102064 | VWLN-04100 | 1/2x100 | 21.7 | 16.7 | 35 | 140 |
| 004102065 | VWLN-04125 | 1/2x125 | 21.7 | 16.7 | 20 | 80 |
| 004102066 | VWLN-04150 | 1/2x150 | 21.7 | 16.7 | 20 | 80 |
| 004102067 | VWLN-04200 | 1/2x200 | 21.7 | 16.7 | - | 35 |
| 004102069 | VWLN-06050 | 3/4x50 | 27.2 | 22.2 | 45 | 180 |
| 004102070 | VWLN-06075 | 3/4x75 | 27.2 | 22.2 | 30 | 120 |
| 004102071 | VWLN-06100 | 3/4x100 | 27.2 | 22.2 | 20 | 80 |
| 004102072 | VWLN-06125 | 3/4x125 | 27.2 | 22.2 | 15 | 60 |
| 004102073 | VWLN-06150 | 3/4x150 | 27.2 | 22.2 | 15 | 60 |
| 004102074 | VWLN-06200 | 3/4xx200 | 27.2 | 22.2 | - | 24 |
| 004102076 | VWLN-08050 | 1"×50 | 34 | 28 | 25 | 100 |
| 004102077 | VWLN-08075 | 1"×75 | 34 | 28 | 15 | 60 |
| 004102078 | VWLN-08100 | 1"x100 | 34 | 28 | 12 | 48 |
| 004102079 | VWLN-08125 | 1"x125 | 34 | 28 | 8 | 32 |
| 004102080 | VWLN-08150 | 1"x150 | 34 | 28 | 8 | 32 |
| 004102081 | VWLN-08200 | 1X200 | 34 | 28 | - | 15 |
| 004102083 | VWLN-10075 | 1"1/4x75 | 42.7 | 36.7 | 18 | 72 |
| 004102084 | VWLN-10100 | 1"1/4x100 | 42.7 | 36.7 | 18 | 72 |
| 004102085 | VWLN-10125 | 1"1/4x125 | 42.7 | 36.7 | 10 | 40 |
| 004102086 | VWLN-10150 | 1"1/4x150 | 42.7 | 36.7 | 10 | 40 |
| 004102087 | VWLN-10200 | 1"1/4x200 | 42.7 | 36.7 | - | 12 |
| 004102089 | VWLN-12075 | 1"1/2x75 | 48.6 | 42.6 | 14 | 56 |
| 004102090 | VWLN-12100 | 1"1/2x100 | 48.6 | 42.6 | 14 | 56 |
| 004102091 | VWLN-12125 | 1"1/2x125 | 48.6 | 42.6 | 8 | 32 |
| 004102092 | VWLN-12150 | 1"1/2x150 | 48.6 | 42.6 | 8 | 32 |
| 004102093 | VWLN-12200 | 1"1/2x200 | 48.6 | 42.6 | - | 6 |
| 004102095 | VWLN-16075 | 2"x75 | 60.5 | 53.5 | 8 | 32 |
| 004102096 | VWLN-16100 | 2"x100 | 60.5 | 53.5 | 8 | 32 |
| 004102097 | VWLN-16125 | 2"x125 | 60.5 | 53.5 | 6 | 24 |
| 004102098 | VWLN-16150 | 2"×150 | 60.5 | 53.5 | 6 | 24 |
| 004102099 | VWLN-16200 | 2"×200 | 60.5 | 53.5 | - | - |
