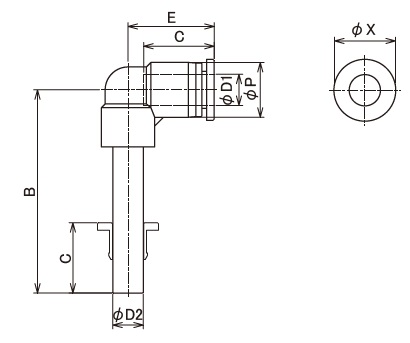

Extended plug-in elbow

Tổng quan

Part No Model No Applicable
tube outer
diameter φD1

Applicable
tube outer
diameter φD2

φP

B C E φX Orifice
Diameter
Weight(g) Qty per
bag
Qty per
box
16000811 OPLLJ 04 4 4 10.4 43.6 16 18.7 10 3 4 10 100
16000812 OPLLJ 06 6 6 12.4 47.5 17 21.1 12 5 5.5 10 50
16000813 OPLLJ 08 8 8 14.4 54.5 18.5 22.8 14 7 8.5 10 50
16000814 OPLLJ 10 10 10 17.6 62 21 26.1 17 8 13.5 5 25
16000815 OPLLJ 12 12 12 21 69.9 22.5 24.3 21 10 19.2 5 25
16000816 OPLLJ 16 16 16 25.6 79.3 24.8 33.5 24 13 22.3 4 20
