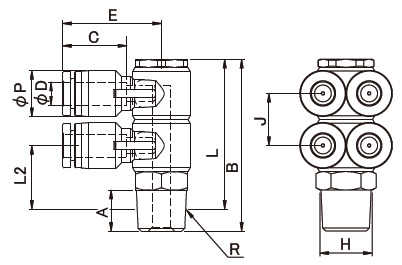

| Part No | Model No | Applicable tube outer diameterφD |
Thread (R) |
A | B | C | H | L | L2 | J | E | φP | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000461 | OPAT 0401(3) | 4 | 1/8 | 8 | 44.7 | 16 | 14 | 39.8 | 16.6 | 14 | 22.3 | 10.4 | 3 | 33 | 5 | 25 |
| 16000462 | OPAT 0402(3) | 4 | 1/4 | 11 | 47.2 | 16 | 14 | 41.2 | 18 | 14 | 22.3 | 10.4 | 3 | 36 | 5 | 25 |
| 16000463 | OPAT 0403(3) | 4 | 3/8 | 12 | 48.2 | 16 | 14 | 41.8 | 18.5 | 14 | 22.3 | 10.4 | 3 | 46 | 5 | 25 |
| 16000464 | OPAT 0601(3) | 6 | 1/8 | 8 | 44.2 | 17 | 14 | 39.8 | 16.6 | 14 | 26.5 | 12.4 | 5 | 37.5 | 5 | 25 |
| 16000465 | OPAT 0602(3) | 6 | 1/4 | 11 | 47.2 | 17 | 17 | 41.2 | 18 | 14 | 26.5 | 12.4 | 5 | 40 | 5 | 25 |
| 16000466 | OPAT 0603(3) | 6 | 3/8 | 12 | 48.2 | 17 | 17 | 41.8 | 18.5 | 14 | 26.5 | 12.4 | 5 | 50.5 | 5 | 25 |
| 16000467 | OPAT 0801(3) | 8 | 1/8 | 8 | 46.2 | 18.5 | 17 | 41.8 | 17.1 | 15 | 29.1 | 14.4 | 7 | 53.5 | 5 | 25 |
| 16000468 | OPAT 0802(3) | 8 | 1/4 | 11 | 49.2 | 18.5 | 17 | 43.2 | 18.5 | 15 | 29.1 | 14.4 | 7 | 57 | 5 | 25 |
| 16000469 | OPAT 0803(3) | 8 | 3/8 | 12 | 50.2 | 18.5 | 17 | 43.7 | 19 | 15 | 29.1 | 14.4 | 7 | 62 | 5 | 20 |
| 16000470 | OPAT 0804(3) | 8 | 1/2 | 15 | 53.2 | 18.5 | 21 | 45.1 | 20.4 | 15 | 29.1 | 14.4 | 7 | 84.5 | 5 | 20 |
| 16000471 | OPAT 1002(3) | 10 | 1/4 | 11 | 58.6 | 21 | 21 | 52.6 | 23 | 18 | 34.3 | 17.6 | 8 | 98 | 4 | 12 |
| 16000472 | OPAT 1003(3) | 10 | 3/8 | 12 | 59.6 | 21 | 21 | 53.1 | 23.85 | 18 | 34.3 | 17.6 | 8 | 104.5 | 4 | 12 |
| 16000473 | OPAT 1004(3) | 10 | 1/2 | 15 | 62.6 | 21 | 21 | 54.5 | 24.25 | 18 | 34.3 | 17.6 | 8 | 112.5 | 4 | 12 |
| 16000474 | OPAT 1202(3) | 12 | 1/4 | 11 | 68.8 | 22.5 | 27 | 62.8 | 26.9 | 21.8 | 38.3 | 21.2 | 10 | 163.5 | 3 | 6 |
| 16000475 | OPAT 1203(3) | 12 | 3/8 | 12 | 69.8 | 22.5 | 27 | 63.3 | 27.4 | 21.8 | 38.3 | 21.2 | 10 | 169 | 3 | 6 |
| 16000476 | OPAT 1204(3) | 12 | 1/2 | 15 | 72.8 | 22.5 | 27 | 64.7 | 28.8 | 21.8 | 38.3 | 21.2 | 10 | 177 | 3 | 6 |
