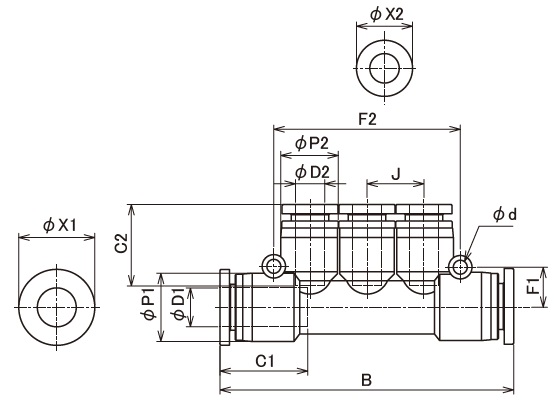

| Part No | Model No | Applicable tube outer diameter φD1 |
Applicable tube outer diameter φD2 |
B | C1 | C2 | P1 | P2 | J | F1 | F2 | φd | φX1 | φX2 |
Oriffice |
Weight(g) | Qty per bag |
Qty per box |
| 16000921 | OPKG 0604 | 6 | 4 | 59.4 | 17 | 16 | 12 | 10.4 | 10 | 8 | 34 | 3.2 | 12 | 10 | 3 | 13.7 | 5 | 25 |
| 16000922 | OPKG 0804 | 8 | 4 | 62 | 18.5 | 16 | 14.4 | 10.4 | 10 | 9 | 34 | 3.2 | 14 | 10 | 3 | 16.8 | 5 | 25 |
| 16000923 | OPKG 0806 | 8 | 6 | 62 | 18.5 | 17 | 14.4 | 12.4 | 12 | 9 | 40 | 3.2 | 14 | 12 | 5 | 18.6 | 5 | 25 |
| 16000924 | OPKG 1006 | 10 | 6 | 79.2 | 21 | 17 | 17.6 | 12.4 | 12 | 10.5 | 42 | 4.2 | 17 | 12 | 5 | 27.6 | 5 | 20 |
| 16000925 | OPKG 1008 | 10 | 8 | 79.2 | 21 | 18.5 | 17.6 | 14.4 | 14 | 10.5 | 48 | 4.2 | 17 | 14 | 7 | 31.2 | 5 | 20 |
