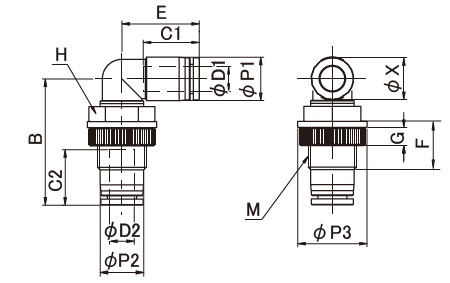

| Part No | Model No | φP1 | Applicable tube outer diameter φD |
φP1 | Applicable tube outer diameter φD1 |
E | C | C2 | B | F | G | H | φP3 | Thread (M) | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000741 | OPLM 04 | 10.4 | 4 | 10.4 | 4 | 19.8 | 15.6 | 16 | 33.6 | 16.6 | 5 | 14 | 17 | M12×1.5 | 10 | 3 | 11 | 10 | 100 |
| 16000742 | OPLM 06 | 12.4 | 6 | 12.4 | 6 | 12.7 | 23 | 17 | 37.9 | 15 | 5 | 17 | 20.5 | M14×1.5 | 12 | 5 | 12.5 | 10 | 50 |
| 16000743 | OPLM 08 | 17.4 | 8 | 17.4 | 8 | 25.7 | 18.6 | 18.5 | 41.9 | 16 | 6 | 19 | 23 | M16×1.5 | 14 | 7 | 18.5 | 5 | 25 |
| 16000744 | OPLM 10 | 17.6 | 10 | 17.6 | 10 | 30.3 | 21.4 | 21 | 47.9 | 18 | 6 | 24 | 29 | M20×2.0 | 17 | 8 | 29 | 5 | 20 |
| 16000745 | OPLM 12 | 21.2 | 12 | 21.2 | 12 | 32.7 | 23.3 | 22.5 | 53.8 | 20 | 6 | 27 | 32 | M24×2.0 | 21 | 10 | 40 | 5 | 15 |
