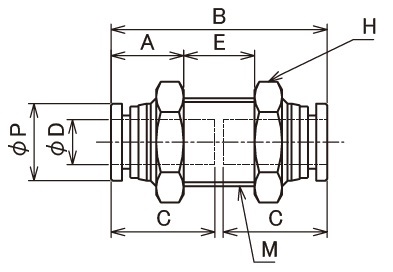

| Part No | Model No | Applicable tube outer diameter φD |
Thread (M) | A | B | C | E | H | F | φP | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000721 | OPMM 04 | 4 | M12×1.0 | 10.2 | 33.4 | 16 | 13 | 14 | 15.2 | 10 | 3 | 18 | 10 | 100 |
| 16000722 | OPMM 06 | 6 | M14×1.0 | 10.7 | 35.9 | 17 | 14.5 | 17 | 16.2 | 12 | 5 | 25.3 | 10 | 50 |
| 16000723 | OPMM 08 | 8 | M16×1.0 | 12.3 | 38.5 | 18.5 | 13.9 | 19 | 16.9 | 14 | 7 | 33.9 | 10 | 50 |
| 16000724 | OPMM 10 | 10 | M20×1.0 | 13 | 43.5 | 21 | 17.5 | 24 | 19.2 | 17 | 9 | 59.2 | 5 | 25 |
| 16000725 | OPMM 12 | 12 | M22×1.0 | 12.6 | 46.2 | 22 | 21 | 26 | 20 | 20 | 10 | 78.1 | 5 | 25 |
