Bulkhead Connector
  • Bulkhead Connector

Bulkhead Connector

Tổng quan

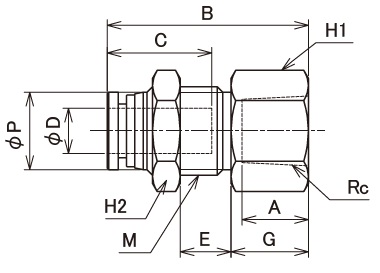

Part No Model No Applicable
tube outer
diameter φD		 Thread
(Rc)		 φP G A B C E H1 H2/ M Orifice
Diameter		 Weight(g) Qty per
bag		 Qty per
box
16000501 OPMF 0401 4 1/8 10 11 9 26.2 14 5 14 14 M12x1.0 3.5 18.1 10 100
16000502 OPMF 0402 4 1/4 10 14 12 29.2 14 5 17 14 M12x1.0 3.5 24.4 10 50
16000503 OPMF 0403 4 3/8 10 15 13 30.2 14 5 21 14 M12x1.0 3.5 32 10 50
16000504 OPMF 0601 6 1/8 12 9 9 27.1 17 7.5 17 17 M14x1.0 5 26.2 10 50
16000505 OPMF 0602 6 1/4 12 13.5 12 31.7 17 7.5 17 17 M14x1.0 5 29 10 50
16000506 OPMF 0603 6 3/8 12 15 13 33.2 17 7.5 19 17 M14x1.0 5 30.3 10 50
16000507 OPMF 0801 8 1/8 14 10 9 31.5 18.5 9.2 19 19 M16x1.0 7 40.4 10 50
16000508 OPMF 0802 8 1/4 14 14 12 35.5 18.5 9.2 19 19 M16x1.0 7 43.9 10 50
16000509 OPMF 0803 8 3/8 14 15 13 36.5 18.5 9.2 19 19 M16x1.0 7 37 10 50
16000510 OPMF 0804 8 1/2 14 19 16 40.5 18.5 9.2 24 19 M16x1.0 7 57.7 5 25
16000511 OPMF 1001 10 1/8 17 11 9 31 21 7 22 24 M20x1.0 7 57.9 5 25
16000512 OPMF 1002 10 1/4 17 14 12 34 21 7 24 24 M20x1.0 9 70.8 5 25
16000513 OPMF 1003 10 3/8 17 15 13 35 21 7 24 24 M20x1.0 9 66.3 5 25
16000514 OPMF 1004 12 1/2 17 19 16 39 21 7 24 24 M20x1.0 9 73 5 25
16000515 OPMF 1201 12 1/8 20 10 9 32.5 22.5 9.9 24 26 M22x1.0 10 80 5 25
16000516 OPMF 1202 12 1/4 20 13 12 35.5 22.5 9.9 24 26 M22x1.0 10 79 5 25
16000517 OPMF 1203 12 3/8 20 15 13 37.5 22.5 9.9 24 26 M22x1.0 10 77.1 5 25
16000518 OPMF 1204 12 1/2 20 19 16 41.5 22.5 9.9 24 26 M22x1.0 10 74.4 5 25
