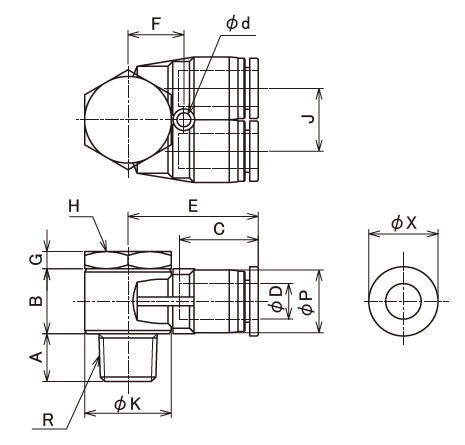

| Part No | Model No | Applicable tube outer diameter φD |
Thread (R) |
φP |
A | B | C | E | H | φK | G | F | J | φd | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000761 | OPA 04M5 | 4 | M5x0.8 | 10.4 | 5.5 | 8.9 | 16 | 20.9 | 8 | 10 | 3 | 10 | 10 | 3.2 | 10 | 2 | 9.2 | 10 | 50 |
| 16000762 | OPA 0601 | 6 | 1/8 | 12.4 | 8 | 14 | 17 | 26.7 | 14 | 15.5 | 4 | 11 | 12 | 3.2 | 12 | 4 | 25.8 | 10 | 50 |
| 16000763 | OPA 0802 | 8 | 1/4 | 14.4 | 11 | 15 | 18.5 | 30.2 | 17 | 20 | 4.5 | 12 | 14 | 3.2 | 14 | 5.5 | 46.6 | 5 | 25 |
| 16000764 | OPA 1003 | 10 | 3/8 | 17.6 | 12 | 18 | 21 | 34.3 | 22 | 23 | 5 | 15 | 17 | 4.4 | 17 | 8 | 76.7 | 4 | 20 |
| 16000765 | OPA 1204 | 12 | 1/2 | 21 | 15 | 21 | 22.5 | 38.3 | 24 | 30 | 5 | 17 | 20 | 4.4 | 21 | 9 | 118 | 5 | 10 |
