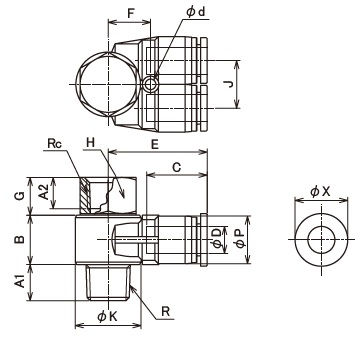

| Part No | Model No | Applicable tube outer diameter φD |
Thread (R) |
Thread (Rc) |
φP |
A1 | A2 | B | C | E | H | φK | G | F | J | φd | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000771 | OPAF 04M5 | 4 | M5x0.8 | M5x0.8 | 10.4 | 5.5 | 5 | 8.9 | 16 | 20.9 | 8 | 10 | 6.5 | 10 | 10 | 3.2 | 10 | 2 | 9.9 | 10 | 50 |
| 16000772 | OPAF 0601 | 6 | 1/8 | 1/8 | 12.4 | 8 | 9 | 14 | 17 | 26.7 | 14 | 15.5 | 9.5 | 11 | 12 | 3.2 | 12 | 4 | 27.4 | 10 | 50 |
| 16000773 | OPAF 0802 | 8 | 1/4 | 1/4 | 14.4 | 11 | 12 | 15 | 18.5 | 30.2 | 17 | 20 | 11.5 | 12.5 | 14 | 3.2 | 14 | 5.5 | 49.2 | 5 | 25 |
| 16000774 | OPAF 1003 | 10 | 3/8 | 3/8 | 17.6 | 12 | 13 | 18 | 21 | 34.3 | 22 | 23 | 13.5 | 15 | 17 | 4.4 | 17 | 8 | 77.9 | 5 | 15 |
| 16000775 | OPAF 1204 | 12 | 1/2 | 1/2 | 21 | 15 | 16 | 21 | 22.5 | 38.8 | 24 | 30 | 17 | 17 | 20 | 4.4 | 21 | 9 | 122.3 | 5 | 10 |
