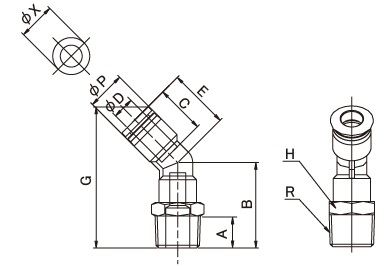

| Part No | Model No | Applicable tube outer diameterφD |
Thread (R) |
φP | A | B | C | E | H | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000181 | OPL 04M5 | 4 | M5×0.8 | 10.4 | 4 | 22 | 16 | 18.1 | 10 | 10 | 2 | 5.6 | 10 | 100 |
| 16000182 | OPL 0401 | 4 | 1/8 | 10.4 | 8 | 24.6 | 16 | 18.1 | 10 | 10 | 2.6 | 10.8 | 10 | 100 |
| 16000183 | OPL 0402 | 4 | 1/4 | 10.4 | 11 | 26.7 | 16 | 18.1 | 14 | 10 | 2.6 | 17.6 | 10 | 100 |
| 16000184 | OPL 06M5 | 6 | M5×0.8 | 12.4 | 4 | 21.9 | 17 | 20.1 | 12 | 12 | 2 | 6.2 | 10 | 100 |
| 16000185 | OPL 0601 | 6 | 1/8 | 12.4 | 8 | 24 | 17 | 20.1 | 12 | 12 | 4.6 | 12.7 | 10 | 100 |
| 16000186 | OPL 0602 | 6 | 1/4 | 12.4 | 11 | 28 | 17 | 20.1 | 14 | 12 | 4.6 | 20.8 | 10 | 50 |
| 16000187 | OPL0603 | 6 | 3/8 | 12.4 | 12 | 30 | 17 | 20.1 | 17 | 12 | 4.6 | 32.5 | 10 | 50 |
| 16000188 | OPL 0801 | 8 | 1/8 | 14.4 | 8 | 27 | 18.5 | 22.7 | 14 | 14 | 5 | 15.8 | 10 | 50 |
| 16000189 | OPL 0802 | 8 | 1/4 | 14.4 | 11 | 31 | 18.5 | 22.7 | 14 | 14 | 6 | 23.1 | 10 | 50 |
| 16000180 | OPL 0803 | 8 | 3/8 | 14.4 | 12 | 32 | 18.5 | 22.7 | 17 | 14 | 6 | 35.5 | 10 | 50 |
| 16000191 | OPL 1001 | 10 | 1/8 | 174 | 8 | 32 | 21 | 26.1 | 17 | 17 | 5 | 28.9 | 10 | 50 |
| 16000192 | OPL 1002 | 10 | 1/4 | 17.4 | 11 | 35 | 21 | 26.1 | 17 | 17 | 8 | 31.6 | 5 | 25 |
| 16000193 | OPL 1003 | 10 | 3/8 | 17.6 | 12 | 36 | 21 | 26.1 | 17 | 17 | 8 | 40.2 | 5 | 25 |
| 16000194 | OPL 1004 | 10 | 1/2 | 17.6 | 15 | 35 | 21 | 26.1 | 21 | 17 | 8 | 53.9 | 5 | 25 |
| 16000195 | OPL 1202 | 12 | 1/4 | 21 | 11 | 36 | 22.5 | 29.3 | 21 | 21 | 8 | 44.3 | 5 | 25 |
| 16000196 | OPL 1003 | 12 | 3/8 | 21 | 12 | 39 | 22.5 | 29.3 | 21 | 21 | 9 | 48.2 | 5 | 25 |
| 16000197 | OPL 1204 | 12 | 1/2 | 21 | 15 | 37 | 22.5 | 29.3 | 21 | 21 | 9 | 59.4 | 5 | 25 |
