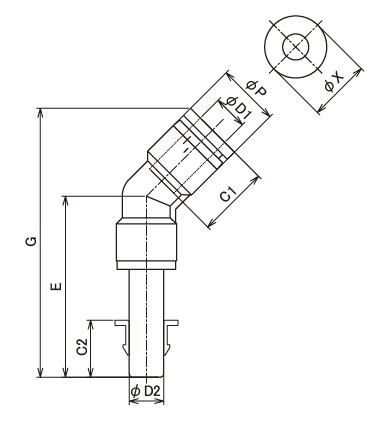

| Part No | Model No | Applicable tube outer diameter φD1 |
Applicable |
φP |
E | C1 | C2 | G | φX | Orifice Diameter |
Weight(g) | Qty per bag |
Qty per box |
| 16000801 | OPLJ45 04 | 4 | 4 | 10.4 | 32.6 | 16 | 16 | 45.36 | 10 | 3 | 6.5 | 10 | 100 |
| 16000802 | OPLJ45 06 | 6 | 6 | 12.8 | 37 | 17 | 17 | 51.18 | 12 | 5 | 8.9 | 10 | 50 |
| 16000803 | OPLJ45 08 | 8 | 8 | 14.4 | 42 | 18.5 | 18.5 | 58.03 | 14 | 7 | 12.2 | 10 | 50 |
| 16000804 | OPLJ45 10 | 10 | 10 | 17.6 | 48 | 21 | 21 | 66.35 | 17 | 8 | 19.8 | 5 | 25 |
| 16000805 | OPLJ45 12 | 12 | 12 | 21 | 53.9 | 22.5 | 22.5 | 74.57 | 21 | 10 | 31.2 | 5 | 25 |
