  • 3-piece body Full Bore Ball Valve Socket Weld Ends Type 1000
3-piece body Full Bore Ball Valve Socket Weld Ends Type 1000
  • 3-piece body Full Bore Ball Valve Socket Weld Ends Type 1000

3-piece body Full Bore Ball Valve Socket Weld Ends Type 1000

Tổng quan

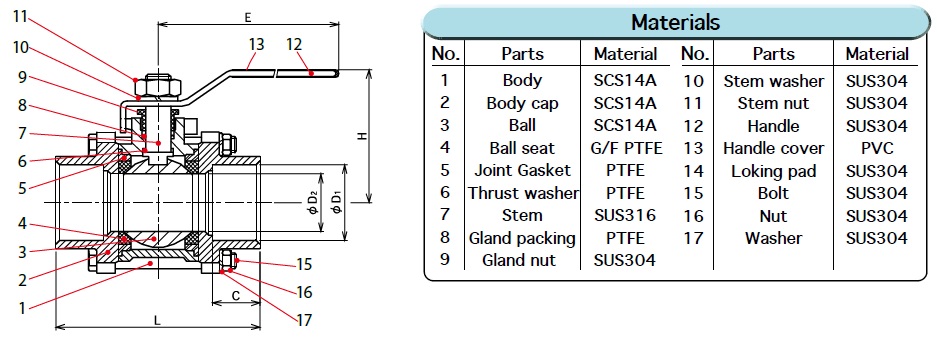

Part No Model No

Thread
(Rp)

 φD1 φD2 L H E C
01101591 V-205S-04 1/2 22 15 130 60 65.5 10
01101592 V-205S-06 3/4 27.5 20 130 64 76.2 13
01101593 V-205S-08 1" 34.3 25 165 71 86 13
01101594 V-205S-10 1"1/4 43 32 165 78 102.8 13
01101595 V-205S-12 1"1/2 48.9 38 190 86 119 13
01101596 V-205S-16 2" 61.3 50 190 95 131.3 16
