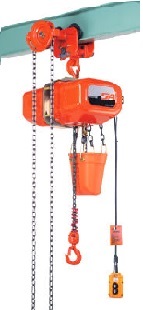

SAG type Electric chain block with geared trolley

Tổng quan

 SAG-0.25 SAG-0.5 SAG-1

SAM type (Hook suspension) specification

Model SAM-0.25 SAM-0.5 SAM-1
Max. working load (ton) 0.25 0.5 1
Manufacturer's test load (ton) 0.3125 0.625 1.25
Standard lift (m) 3 3 3
Lifting speed
(m/min)
50Hz​ 7.0 6.3 3.1
60HZ 8.4 7.5 3.8
Trolley Traveling length driven by
pulling hand chain 1m (mm)
115 115 94
Hand effort to move geared trolley (kg) 1 2 3.5
Headroom (mm) 670(575) 670(575) 785(680)
I-Beam Width (mm) 75 100 125 75 100 125 75 100 125
Minimum radius (mm) 900 900 1100
Net weight (kg) 57(60) 57(60) 65(71)
