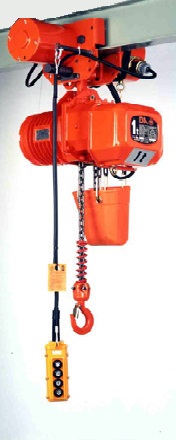

DAM type specification
| Model |
DAM-0.25
|
DAM-0.5
|
DAM-1W
|
DAM-1S
|
| Max. working load (ton) |
0.25
|
0.5
|
1
|
1
|
| Test load (ton) |
0.313
|
0.625
|
1.25
|
1.25
|
| Standard lift (m) |
3
|
6
|
3
|
6
|
3
|
6
|
3
|
6
|
| Standard push button cord length (m) |
2.5
|
5.5
|
2.5
|
5.5
|
2.5
|
5.5
|
2.5
|
5.5
|
| Lifting motor output (kw) |
0.5
|
0.9
|
0.9
|
1.7
|
| Traversing motor output (kw) |
0.4
|
0.4
|
0.4
|
0.4
|
| Lifting speed (m/min) |
50Hz |
7.8
|
7.3
|
3.6
|
6.8
|
| 60Hz |
9.3
|
8.6
|
4.3
|
8.2
|
| Traversing speed (m/min) |
High speed |
50Hz/60Hz |
20/24
|
20/24
|
20/24
|
20/24
|
| Low speed |
50Hz/60Hz |
10/12
|
10/12
|
10/12
|
10/12
|
| Headroom (mm) |
570
|
580
|
740
|
620
|
| I-beam |
Width (mm) |
75 100 125 150
|
75 100 125 150
|
75 100 125 150
|
75 100 125 150
|
| Minimum radius (mm) |
1100(800)
|
1100(800)
|
1100(800)
|
1100(800)
|
| Net weight (kg) |
73(77)
|
75(79)
|
92(102)
|
101(106)
|
| 1)The number bracketed in "Net weight (kg)" indicates 6m lift. |
| 2)The length of power cord in standard is 4 core-0.5m in case of 4 push button, 7 core-0.5m in case of 6 push button. |
| 3)When you need 6 push button for crane instead of 4 push button, "C" should be added to the end of model name. |
| 4)We can supply the special electric trolley of which "Trolley mini radius" is the number bracketed off. |
| *mark--When you install more than 2.5 ton chain block to I beam width 100mm, please note that the strength of the rail may not be enough depends on the span. |
| |
| Model |
DAM-1.5
|
DAM-2W
|
DAM-2S
|
DAM-2.5
|
| Max. working load (ton) |
1.5
|
2
|
2
|
2.5
|
| Test load (ton) |
1.88
|
2.5
|
2.5
|
3.13
|
| Standard lift (m) |
3
|
6
|
3
|
6
|
3
|
6
|
4
|
| Standard push button cord length (m) |
2.5
|
5.5
|
2.5
|
5.5
|
2.5
|
5.5
|
3.5
|
| Lifting motor output (kw) |
3.4
|
1.7
|
3.4
|
3.4
|
| Traversing motor output (kw) |
0.4
|
0.4
|
0.4
|
0.75
|
| Lifting speed (m/min) |
50Hz |
8.7
|
3.4
|
6.9
|
5.5
|
| 60Hz |
10.3
|
4.1
|
8.1
|
6.5
|
| Traversing speed (m/min) |
High speed |
50Hz/60Hz |
20/24
|
20/24
|
20/24
|
20/24
|
| Low speed |
50Hz/60Hz |
10/12
|
10/12
|
10/12
|
10/12
|
| Headroom (mm) |
780
|
795
|
735
|
750
|
| I-beam |
Width (mm) |
100 125 150
|
100 125 150
|
100 125 150
|
100 125 150
|
| Minimum radius (mm) |
1500(800)
|
1500(800)
|
1500(800)
|
1500(1000)
|
| Net weight (kg) |
192(200)
|
124(133)
|
197(206)
|
192
|
| 1)The number bracketed in "Net weight (kg)" indicates 6m lift. |
| 2)The length of power cord in standard is 4 core-0.5m in case of 4 push button, 7 core-0.5m in case of 6 push button. |
| 3)When you need 6 push button for crane instead of 4 push button, "C" should be added to the end of model name. |
| 4)We can supply the special electric trolley of which "Trolley mini radius" is the number bracketed off. |
| *mark--When you install more than 2.5 ton chain block to I beam width 100mm, please note that the strength of the rail may not be enough depends on the span. |
| DA/DB TOP |
|
| Model |
DAM-3
|
DAM-5
|
DAM-7.5
|
DAM-10
|
| Max. working load (ton) |
3
|
5
|
7.5
|
10
|
| Test load (ton) |
3.75
|
6.25
|
9.38
|
12.5
|
| Standard lift (m) |
4
|
4
|
4
|
4
|
| Standard push button cord length (m) |
3.5
|
3.5
|
3.5
|
3.5
|
| Lifting motor output (kw) |
3.4
|
3.4
|
3.4
|
3.4x2
|
| Traversing motor output (kw) |
0.75
|
0.75
|
0.75x2
|
0.75x2
|
| Lifting speed (m/min) |
50Hz |
4.35
|
2.75
|
1.8
|
2.7
|
| 60Hz |
5.15
|
3.25
|
2.1
|
3.2
|
| Traversing speed (m/min) |
High speed |
50Hz/60Hz |
20/24
|
20/24
|
20/24
|
20/24
|
| Low speed |
50Hz/60Hz |
10/12
|
10/12
|
10/12
|
10/12
|
| Headroom (mm) |
960
|
1050
|
1205
|
1185
|
| I-beam |
Width (mm) |
100 125 150
|
125 150 175
|
125 150 175
|
125 150 175
|
| Minimum radius (mm) |
1500(1000)
|
2000(1000)
|
Infinity
|
Infinity
|
| Net weight (kg) |
209
|
246
|
480
|
619
|
| 1)The number bracketed in "Net weight (kg)" indicates 6m lift. |
| 2)The length of power cord in standard is 4 core-0.5m in case of 4 push button, 7 core-0.5m in case of 6 push button. |
| 3)When you need 6 push button for crane instead of 4 push button, "C" should be added to the end of model name. |
| 4)We can supply the special electric trolley of which "Trolley mini radius" is the number bracketed off. |
| *mark--When you install more than 2.5 ton chain block to I beam width 100mm, please note that the strength of the rail may not be enough depends on the span. |
DBM type specification
| Model |
DBM-0.25
|
DBM-0.5
|
DBM-1W
|
DBM-1S
|
DBM-1.5
|
| Max. working load (ton) |
0.25
|
0.5
|
1
|
1
|
1.5
|
| Test load (ton) |
0.313
|
0.625
|
1.25
|
1.25
|
1.88
|
| Standard lift (m) |
3
|
6
|
3
|
6
|
3
|
6
|
3
|
6
|
3
|
6
|
| Standard push button cord length (m) |
2.5
|
5.5
|
2.5
|
5.5
|
2.5
|
5.5
|
2.5
|
5.5
|
2.5
|
5.5
|
Lifting motor output (kw),
(DB) High:Low speed |
0.5:0.17
|
0.9:0.3
|
0.9:0.3
|
1.7:0.57
|
3.4:1.14
|
| Traversing motor output (kw) |
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
Lifting speed (m/min)
(DB) High:Low speed |
50Hz |
7.8:2.6
|
7.3:2.4
|
3.6:1.2
|
6.8:2.2
|
8.7:2.9
|
| 60Hz |
9.3:3.1
|
8.6:2.8
|
4.3:1.4
|
8.22.7
|
10.3:3.4
|
| Traversing speed (m/min) |
High speed |
50Hz/60Hz |
20/24
|
20/24
|
20/24
|
20/24
|
20/24
|
| Low speed |
50Hz/60Hz |
10/12
|
10/12
|
10/12
|
10/12
|
10/12
|
| Headroom (mm) |
570
|
580
|
740
|
620
|
780
|
| I-beam |
Width (mm) |
75 100 125
|
75 100 125
|
75 100 125
|
75 100 125
|
100 125 150
|
| Minimum radius (mm) |
1100(800)
|
1100(800)
|
1100(800)
|
1100(800)
|
1500(800)
|
| Net weight (kg) |
87(91)
|
91(96)
|
111(119)
|
121(126)
|
213(220)
|
| 1)The number bracketed in "Net weight (kg)" indicates 6m lift. |
| 2)The length of power cord in standard is 4 core-0.5m in case of 4 push button, 7 core-0.5m in case of 6 push button. |
| 3)When you need 6 push button for crane instead of 4 push button, "C" should be added to the end of model name. |
| 4)We can supply the special electric trolley of which "Trolley mini radius" is the number bracketed off. |
| *mark--When you install more than 2.5 ton chain block to I beam width 100mm, please note that the strength of the rail may not be enough depends on the span. |
| Model |
DBM-2W
|
DBM-2S
|
DBM-2.5
|
DBM-3
|
DBM-5
|
| Max. working load (ton) |
2
|
2
|
2.5
|
3
|
5
|
| Test load (ton) |
2.5
|
2.5
|
3.13
|
3.75
|
6.25
|
| Standard lift (m) |
3
|
6
|
3
|
6
|
4
|
4
|
4
|
| Standard push button cord length (m) |
2.5
|
5.5
|
2.5
|
5.5
|
3.5
|
3.5
|
3.5
|
Lifting motor output (kw),
(DB) High:Low speed |
1.7:0.57
|
3.4:1.14
|
3.4:1.14
|
3.4:1.14
|
3.4:1.14
|
| Traversing motor output (kw) |
0.4
|
0.4
|
0.75
|
0.75
|
0.75
|
Lifting speed (m/min)
(DB) High:Low speed |
50Hz |
3.4:1.1
|
6.9:2.3
|
5.5:1.8
|
4.35:1.4
|
2.75:0.9
|
| 60Hz |
4.1:1.3
|
8.1:2.7
|
6.5:2.1
|
5.15:1.7
|
3.25:1.0
|
| Traversing speed (m/min) |
High speed |
50Hz/60Hz |
20/24
|
20/24
|
20/24
|
20/24
|
20/24
|
| Low speed |
50Hz/60Hz |
10/12
|
10/12
|
10/12
|
10/12
|
10/12
|
| Headroom (mm) |
795
|
735
|
750
|
960
|
1050
|
| I-beam |
Width (mm) |
100* 125 150
|
100* 125 150
|
100* 125 150
|
100* 125 150
|
125 150 175
|
| Minimum radius (mm) |
1500(800)
|
1500(800)
|
1500(1000)
|
1500(1000)
|
2000(1000)
|
| Net weight (kg) |
144(153)
|
217(227)
|
209
|
226
|
263
|
| 1)The number bracketed in "Net weight (kg)" indicates 6m lift. |
| 2)The length of power cord in standard is 4 core-0.5m in case of 4 push button, 7 core-0.5m in case of 6 push button. |
| 3)When you need 6 push button for crane instead of 4 push button, "C" should be added to the end of model name. |
| 4)We can supply the special electric trolley of which "Trolley mini radius" is the number bracketed off. |
| *mark--When you install more than 2.5 ton chain block to I beam width 100mm, please note that the strength of the rail may not be enough depends on the span. |
|
