LTM 1150-5.3 - The jewel for any fleet.

With a maximum lifting capacity of 150 tonnes (175 USt) and a long telescopic boom, the LTM 1150-5.3 is the perfect addition to Liebherr’s crane range below the LTM 1160-5.2. With an axle load of twelve tonnes (26,450 lb), the crane can carry nine tonnes (19,800 lb) of ballast on public roads. This ballast enables it to complete lots of jobs without requiring an additional vehicle to transport the ballast. Its powerful telescopic boom can be extended with lots of add-on jibs. These are compatible with many of our cranes with lifting capacities between 100 and 180 tonnes (220,500 lb and 396,830 lb). We have continued our single-engine strategy on this crane with a mechanical drive unit for the superstructure. The weight reduction created by the elimination of the superstructure engine is used to deliver a longer boom and more lifting capacity.


What's inside

  • Lots on board:

    The crane can carry 9 t / 19,800 lb of ballast with an axle load of 12 t / 26,450 lb.

  • Economical design:

    Carrying a large part of its ballast means there is often no need for an additional transport vehicle.

  • Makes a great deal possible:

    Many jobs can be completed quickly without any additional equipment thanks to its long boom and the ballast it carries.

  • Off-road assistance:

    Hill Start Aid helps starting on a gradient – consigning rolling backwards to history.

  • Efficient:

    ECOmode and ECOdrive reduce fuel consumption by up to 10%.

  • Hook block can be ballasted:

    Weighted plates on both sides of the hook block enable the weight of the block to be adjusted perfectly to the situation.

Technical data

Max. load capacity 150 t
at radius 3.00 m
Telescopic boom from 12.30 m
Telescopic boom up to 66.00 m
Lattice jib from 2.90 m
Lattice jib up to 26.00 m
Drive engine/make Liebherr
Drive engine 6-Zylinder-Diesel
Drive engine/power 400 kW
Number of axles 5
Drive/Steering standard 10 x 6 x 10
Drive/Steering option 10 x 8 x 10
Driving speed 85.00 km/h
Total ballast 45.00 t



Technical Data - Mobile crane LTM 1150-5.3 [m/t]

PDF (5 MB)

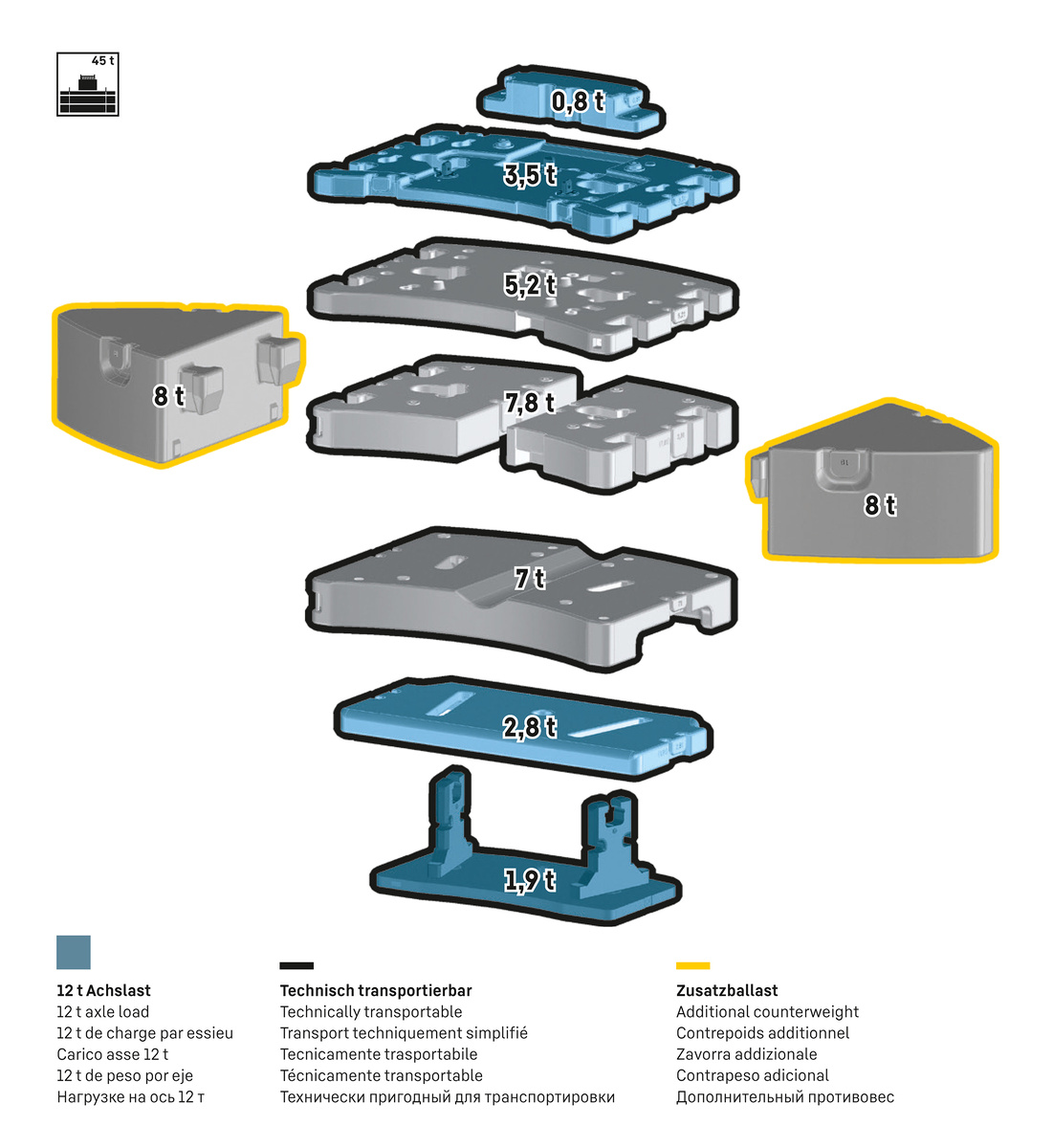

Ballast systems

Counterweight [t]

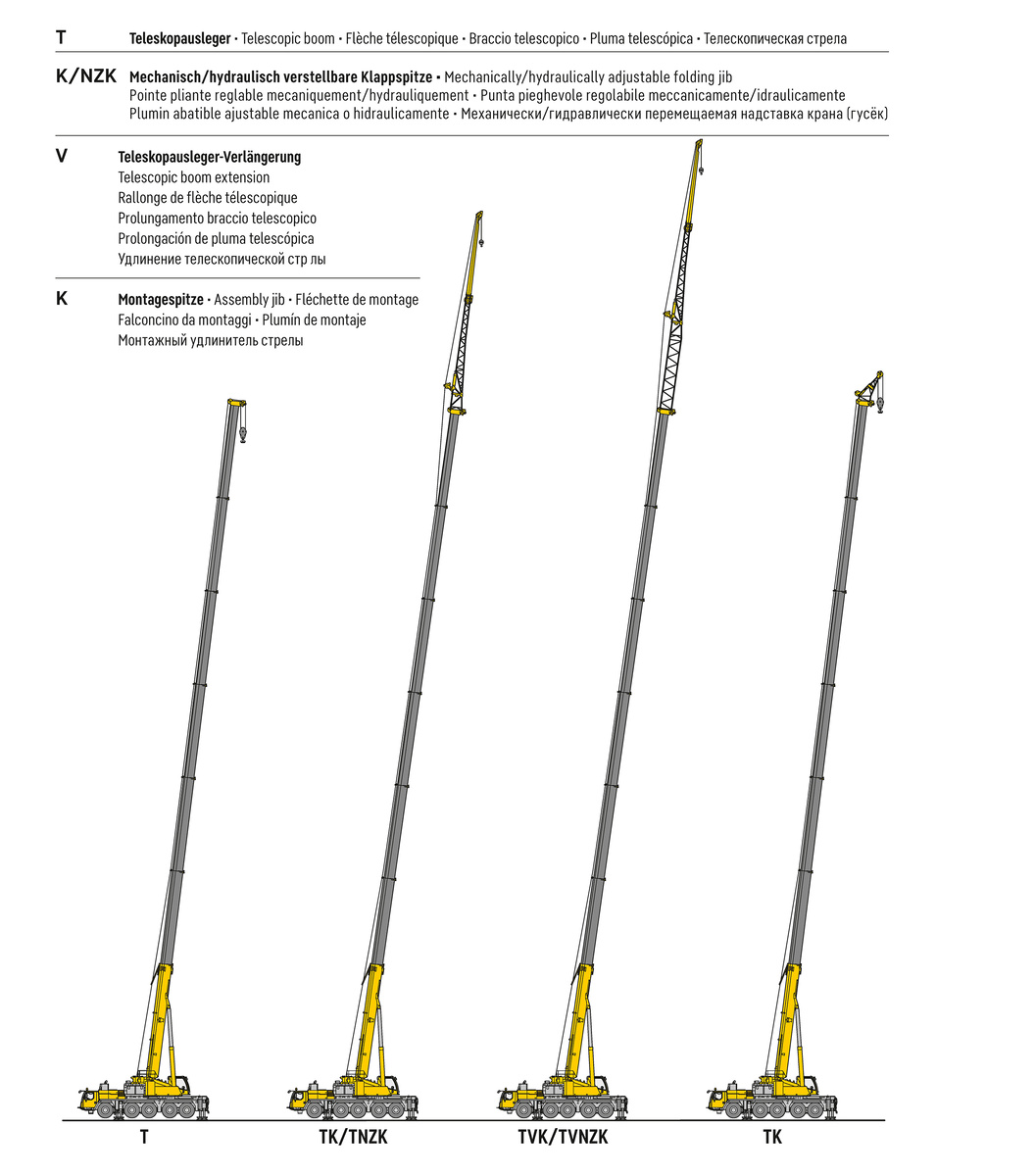

Boom/jib combinations

Driving conditions

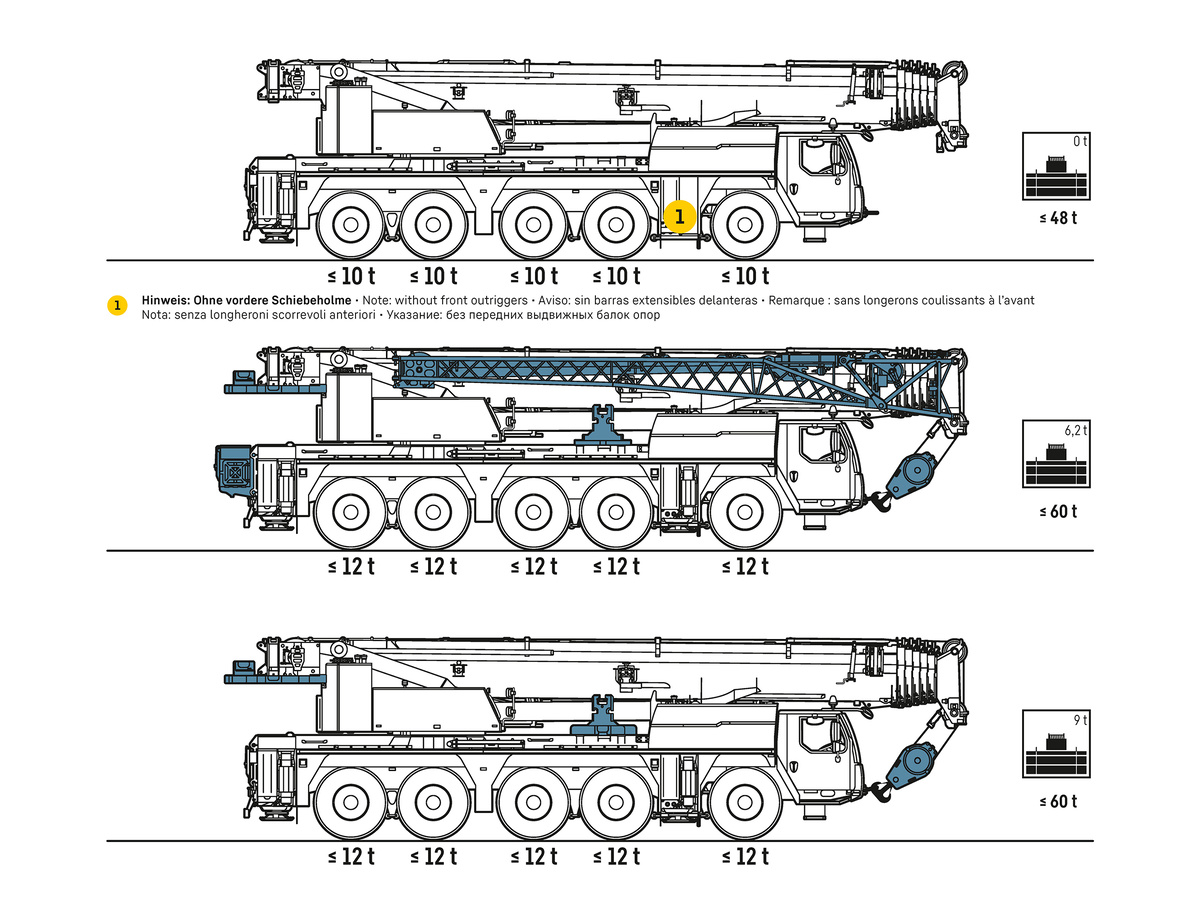

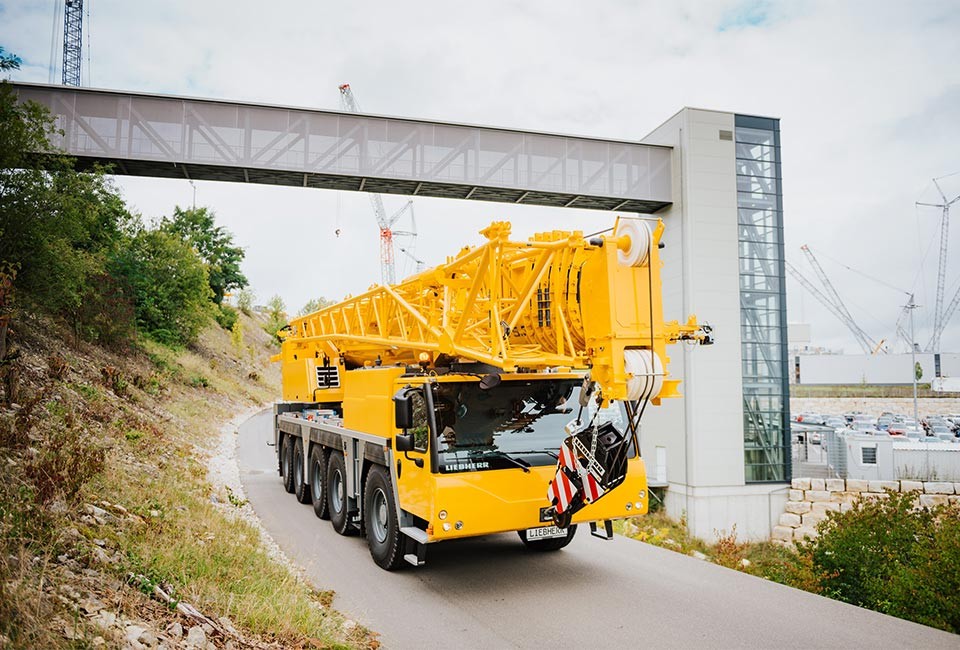

On-road driving

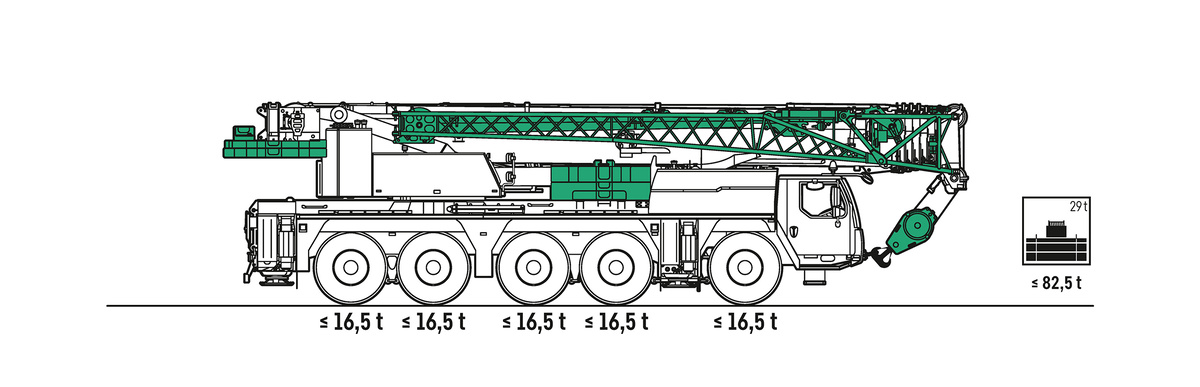

Jobsite driving
