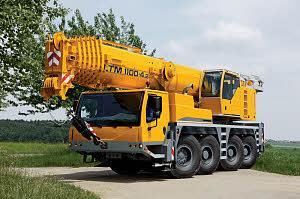

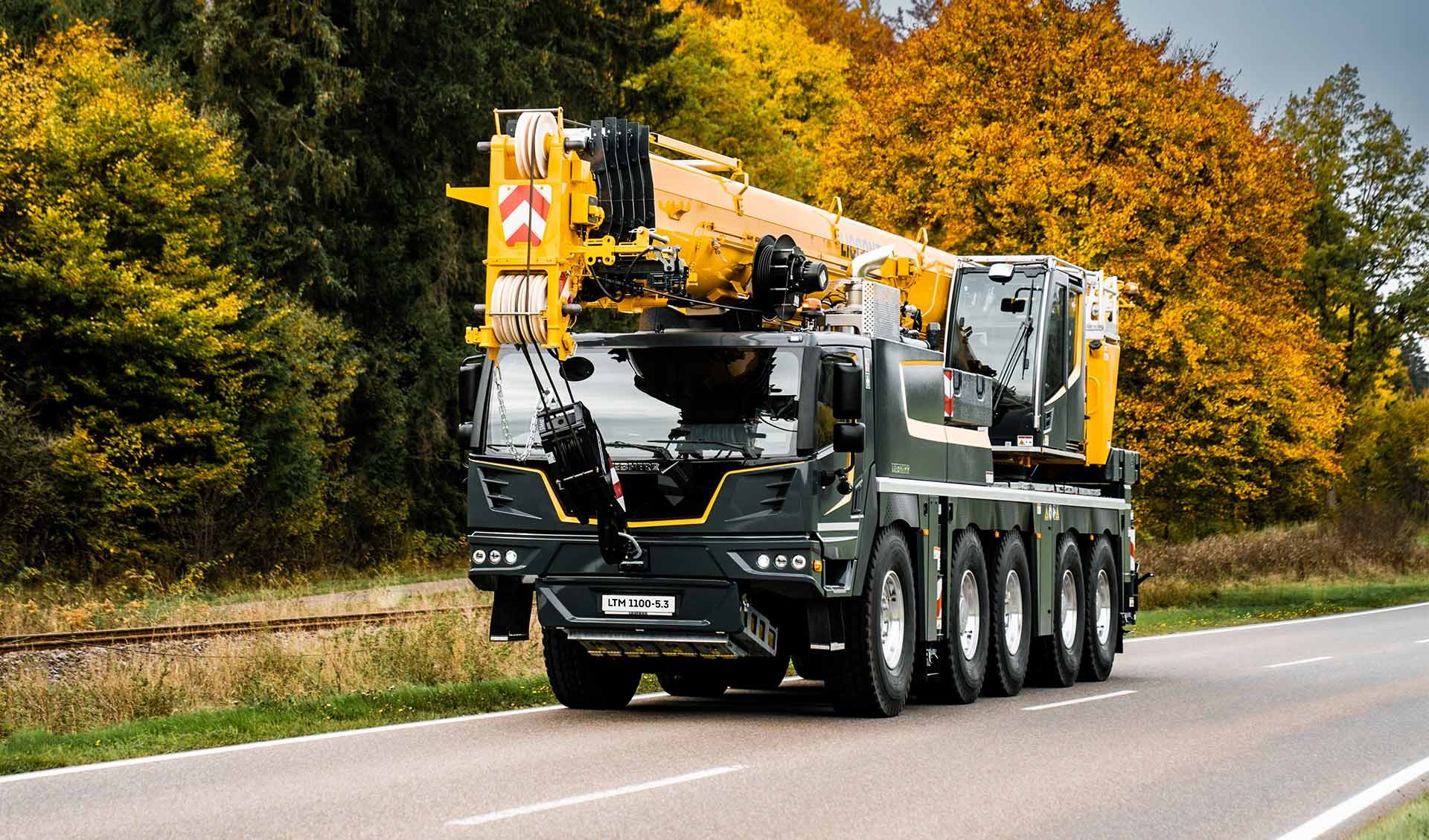

LTM 1100-5.3 Mobile Crane

Tổng quan

LTM 1100-5.3 - The master of all roads.

A mobile crane that takes the combination of mobility, economy and performance to a whole new level – the LTM 1100-5.3 has a powerful, 62 metre (203 ft) telescopic boom and can carry up to 16.9 tonnes (37,250 lb) of ballast on public roads with an axle load of just 12 tonnes (26,450 lb). The crane is also suitable for economical global mobility as it can travel with an axle load of just 9 tonnes (19,840 lb). This is why we are launching the new LTM 1100-5.3 with the slogan “The master of all roads”. It is the second crane in Liebherr’s mobile crane portfolio to feature the new LICCON3 control system.


What's inside

  • Suitable for global mobility:

    The crane can travel with an axle load of just 9 t / 19,850 lb. That ensures maximum flexibility on the road.

  • Economical:

    75 % of the maximum ballast can be carried on the road with an axle load of just 12 t / 26,450 lb. This saves truck transports.

  • Large working range:

    The long, powerful telescopic boom enables high lifting capacities and long radii to be achieved.

  • LICCON3:

    The third generation of the LICCON control system takes the familiar crane control to a new level and features new technologies.

  • Wear-free manoeuvring:

    The new DynamicPerform clutch module on the TraXon gearbox transmits engine power via integrated disks that are cooled by oil circulation.

  • Variable support:

    Flexible support thanks to VarioBase® and thus increase safety and lifting capacity.

Technical data

Max. load capacity 110 US t
at radius 10 ft
Telescopic boom from 43 ft
Telescopic boom up to 203 ft
Lattice jib from 6.6 ft
Lattice jib up to 53 ft
Drive engine/make Liebherr
Drive engine 6-Zylinder-Diesel
Drive engine/power 544 hp
Number of axles 5
Drive/Steering standard 10 x 6 x 10
Drive/Steering option 10 x 8 x 10
Driving speed 53.00 mph
Total ballast 49,600 lb



Technical Data - Mobile crane LTM 1100-5.3 [ft/lb]

PDF (6.7 MB)



Ballast systems

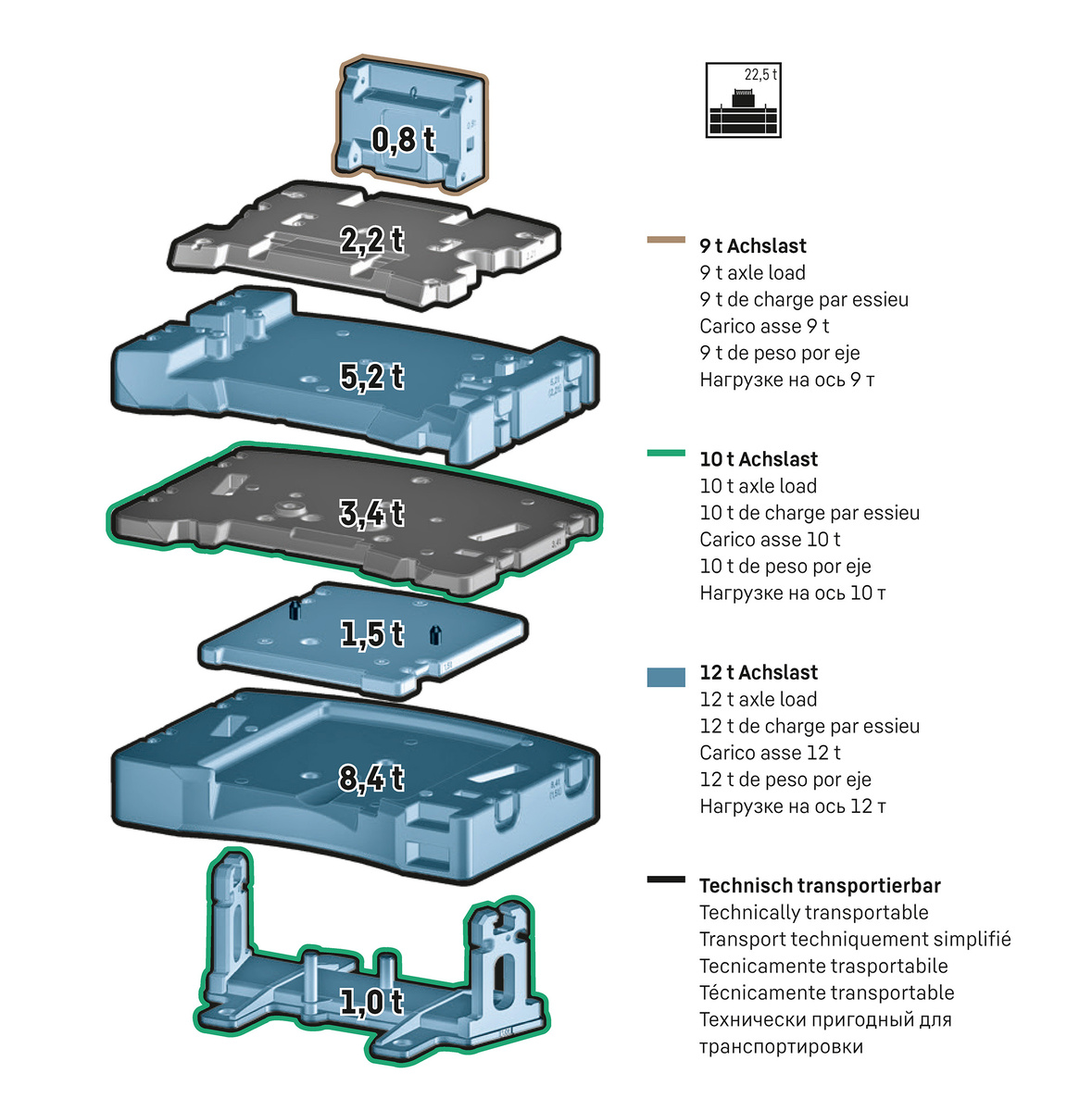

Counterweight [t]

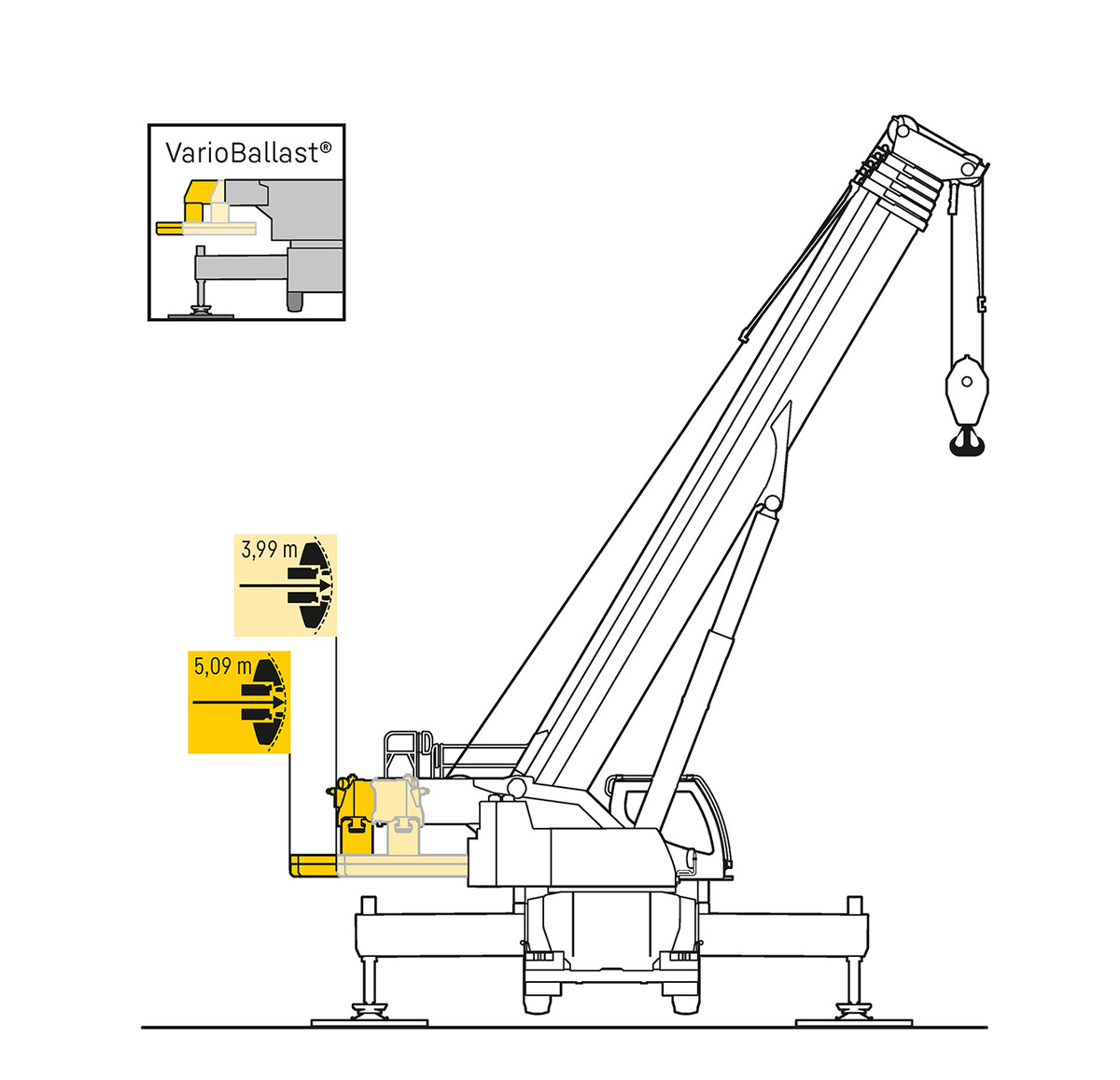

VarioBallast: Counterweight radius

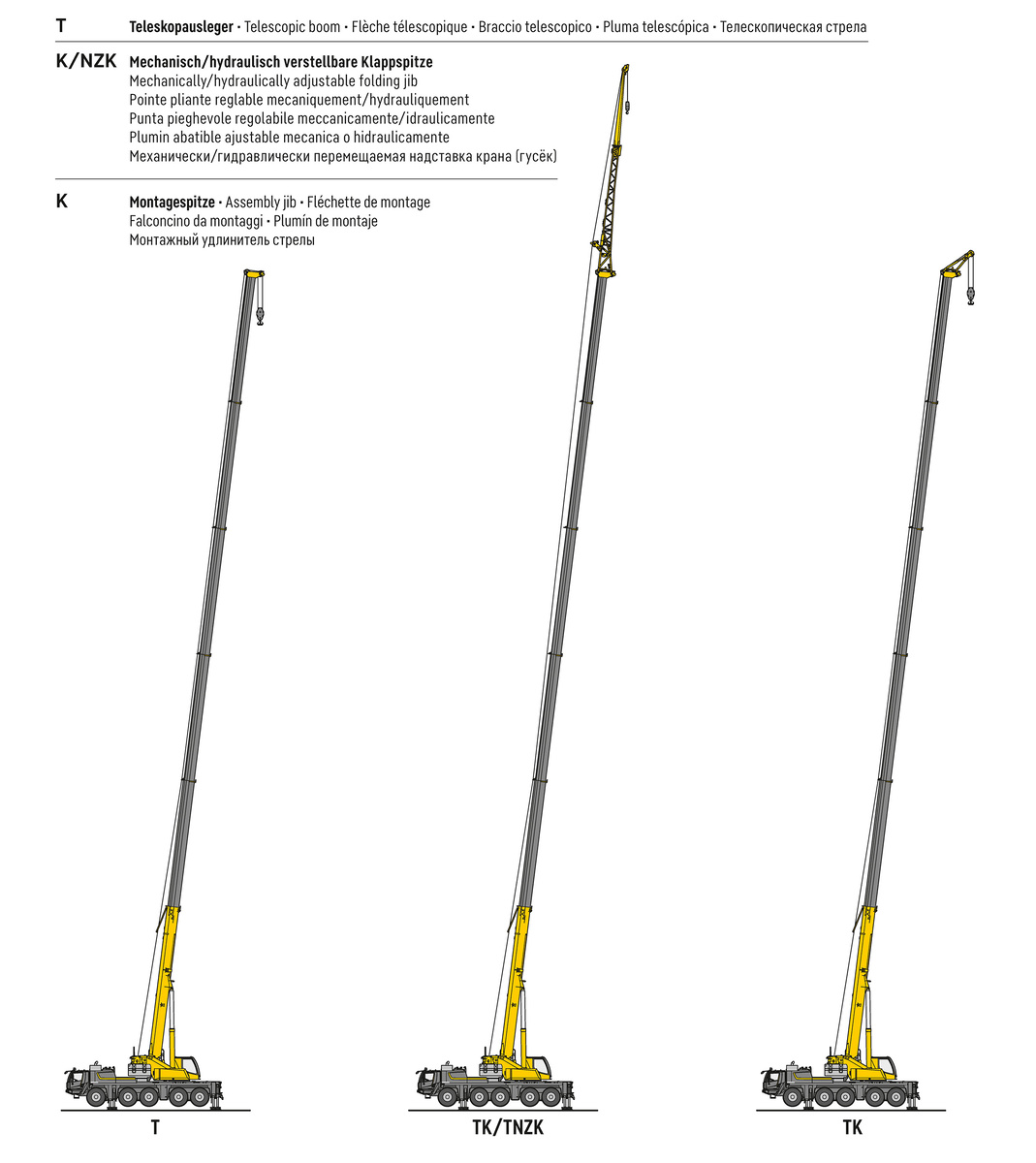

Boom/jib combinations

Driving conditions

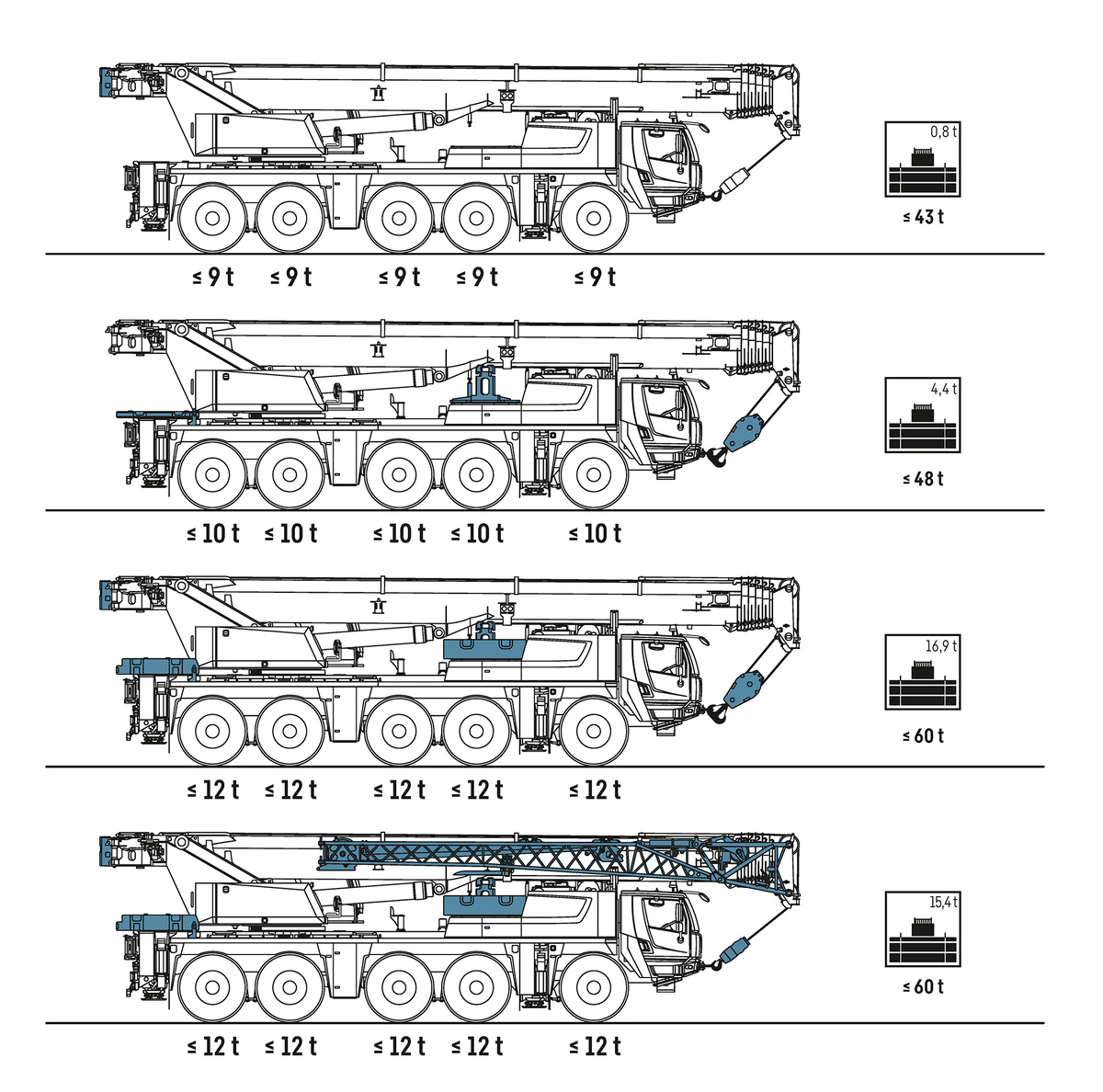

On-road driving

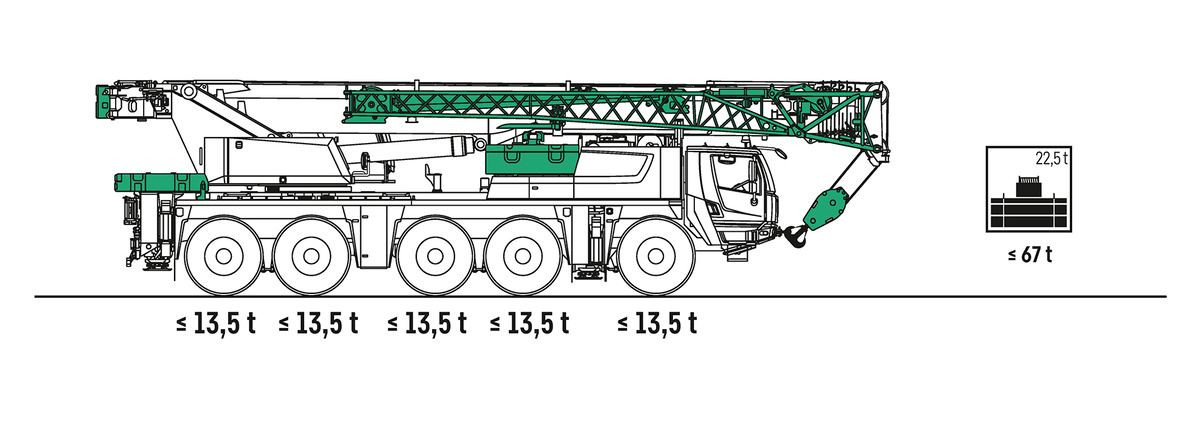

Jobsite driving
