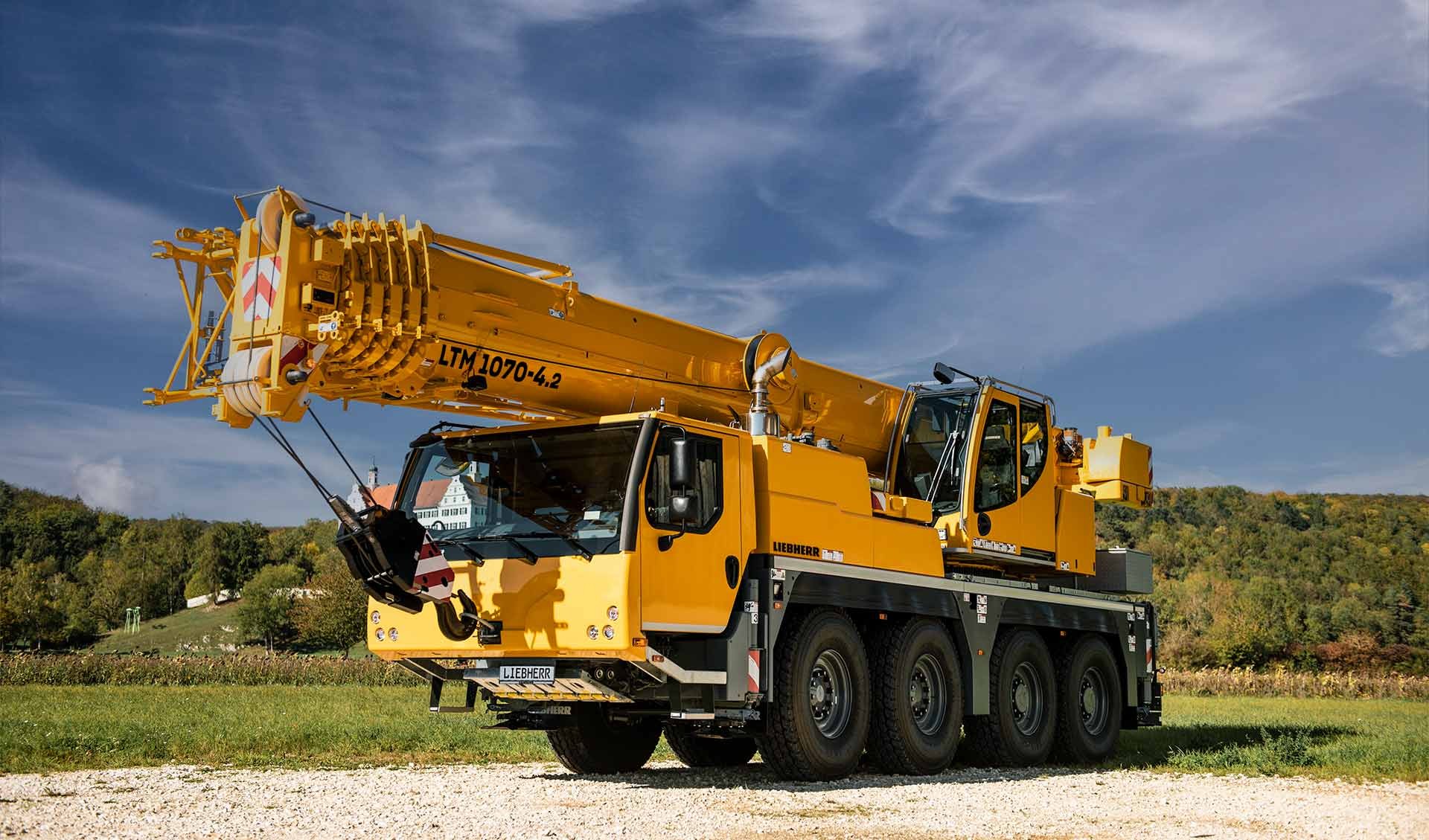

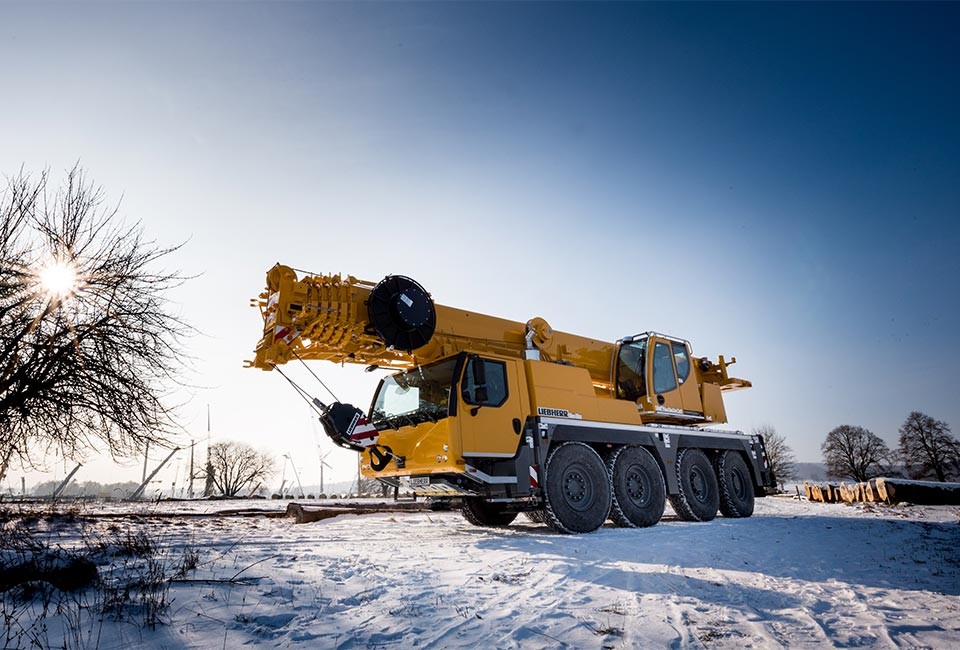

LTM 1070-4.2 - A small 4-axle crane with giant potential.
| The LTM 1070-4.2 features the very latest technology – ECOmode and ECOdrive reduce both fuel consumption and noise. The time-tested TELEMATIK single-cylinder telescoping system ensures that the telescopic boom can be extended to the required length easily and automatically. And the active, speed-dependent rear-axle steering enables the crane to drive off-road and makes it highly manoeuvrable. The 4-axle crane can also carried the majority of its ballast on the road. This means that it is immediately ready for use once it reaches the site. So the smallest of our 4-axle cranes is packed full of potential. |
What's inside
-
Reaches into the sky:

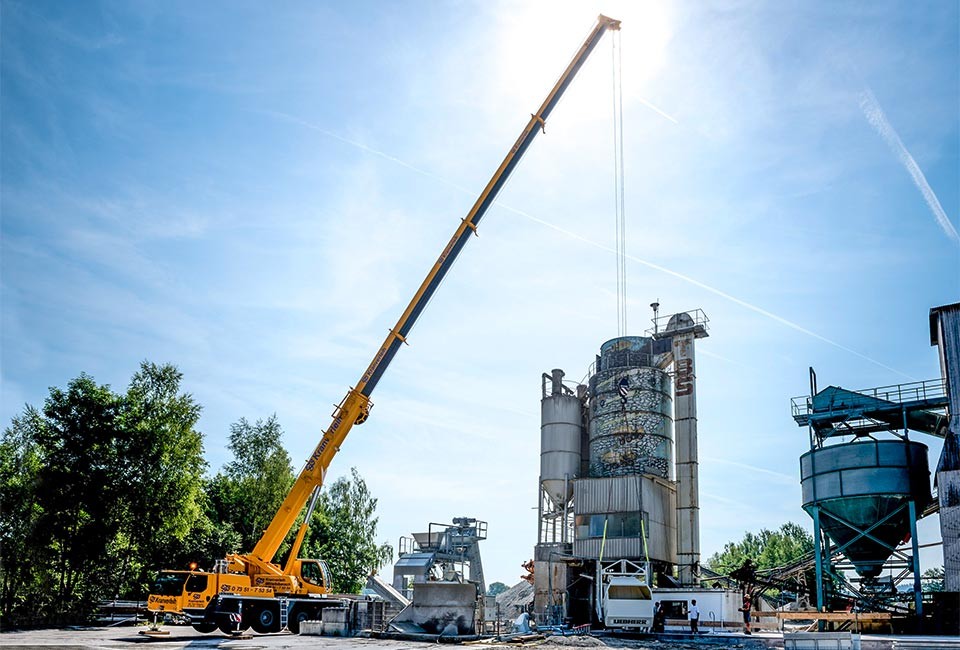

The LTM 1070-4.2 can reach a hoist height of up to 65 m with the folding jib attached.
-
TELEMATIK:
The telescopic boom is extended using the time-tested single-cylinder telescoping system.
-
Reduced fuel consumption and noise:
ECOmode and ECOdrive reduce fuel consumption and ensure low noise in action.
-
Can be adjusted quickly:
The optional quick change system for the ballast gives the crane flexibility for various situations.
-
Variable support:
The VarioBase® support system is available as an option to enhance safety.
Technical data
| Max. load capacity | 80 US t |
|---|---|
| at radius | 8 ft |
| Telescopic boom from | 36 ft |
| Telescopic boom up to | 164 ft |
| Lattice jib from | 10 ft |
| Lattice jib up to | 52 ft |
| Drive engine/make | Liebherr |
| Drive engine | 6-Zylinder-Diesel |
| Drive engine/power | 449 hp |
| Number of axles | 4 |
| Drive/Steering standard | 8 x 4 x 8 |
| Drive/Steering option | 8 x 6 x 8 |
| Driving speed | 53.00 mph |
| Total ballast | 32,000 lb |
Downloads
 Technical Data - Mobile crane LTM 1070-4.2 [ft/lb]

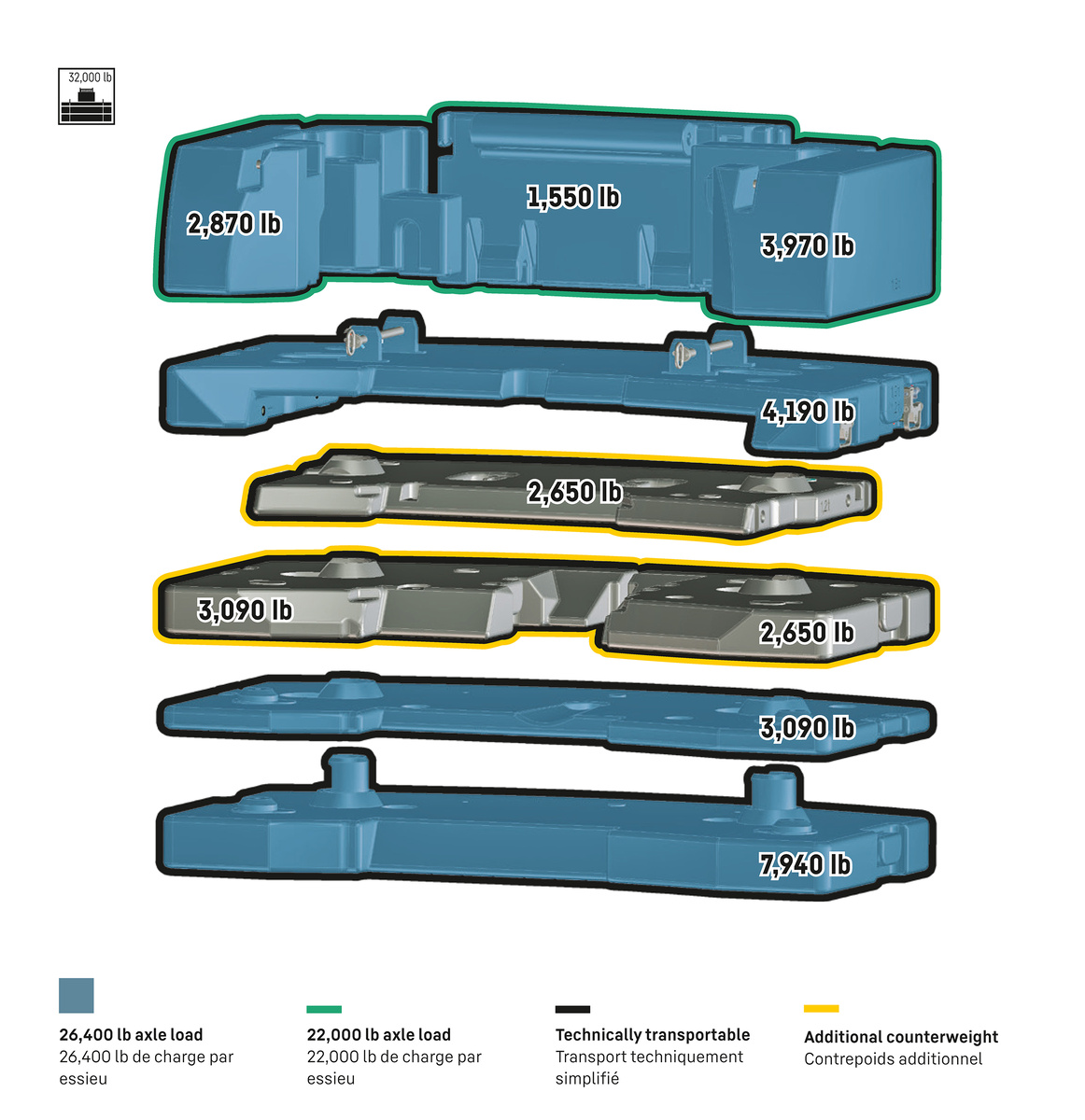

Ballast systems

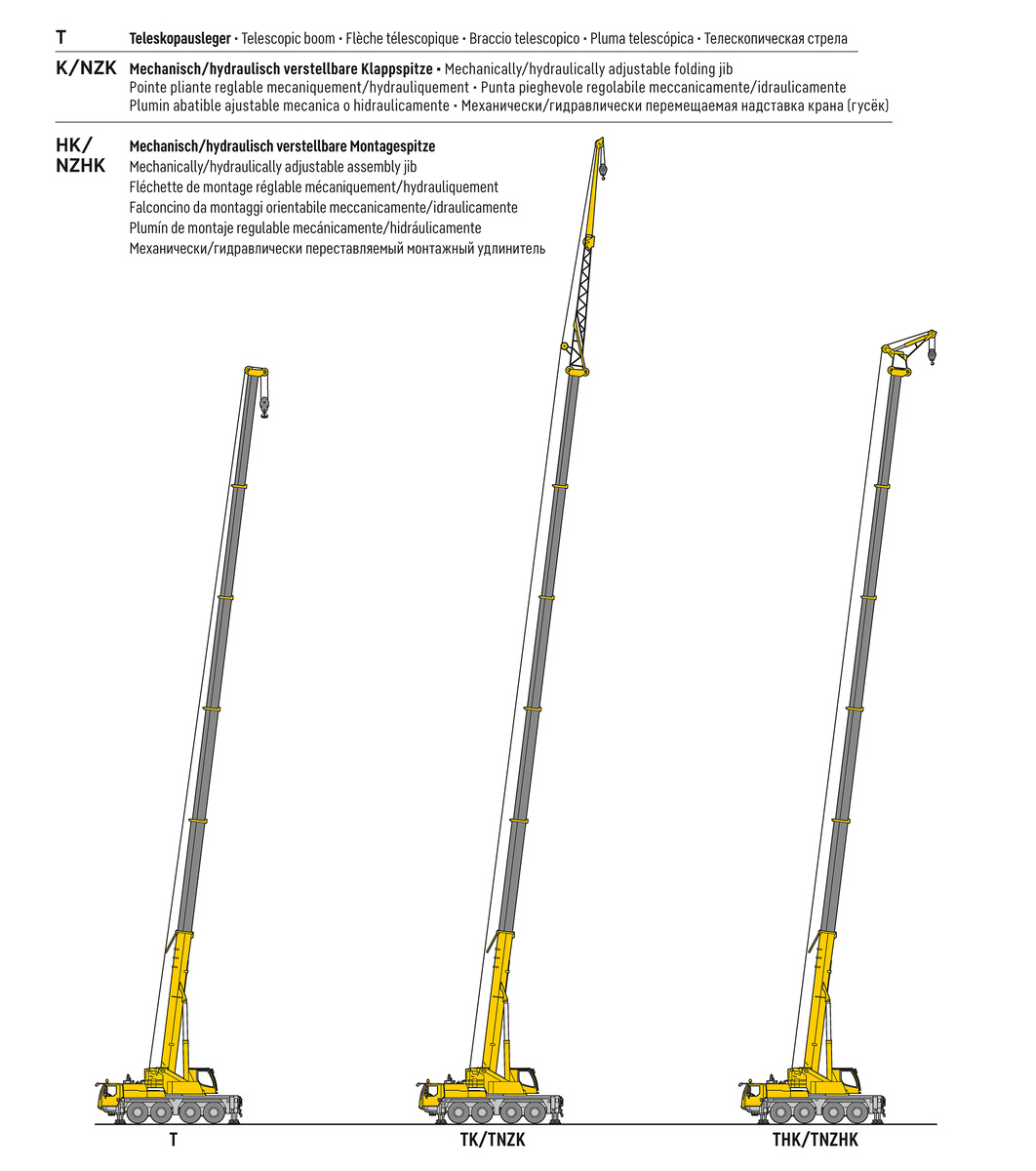

Boom/jib combinations

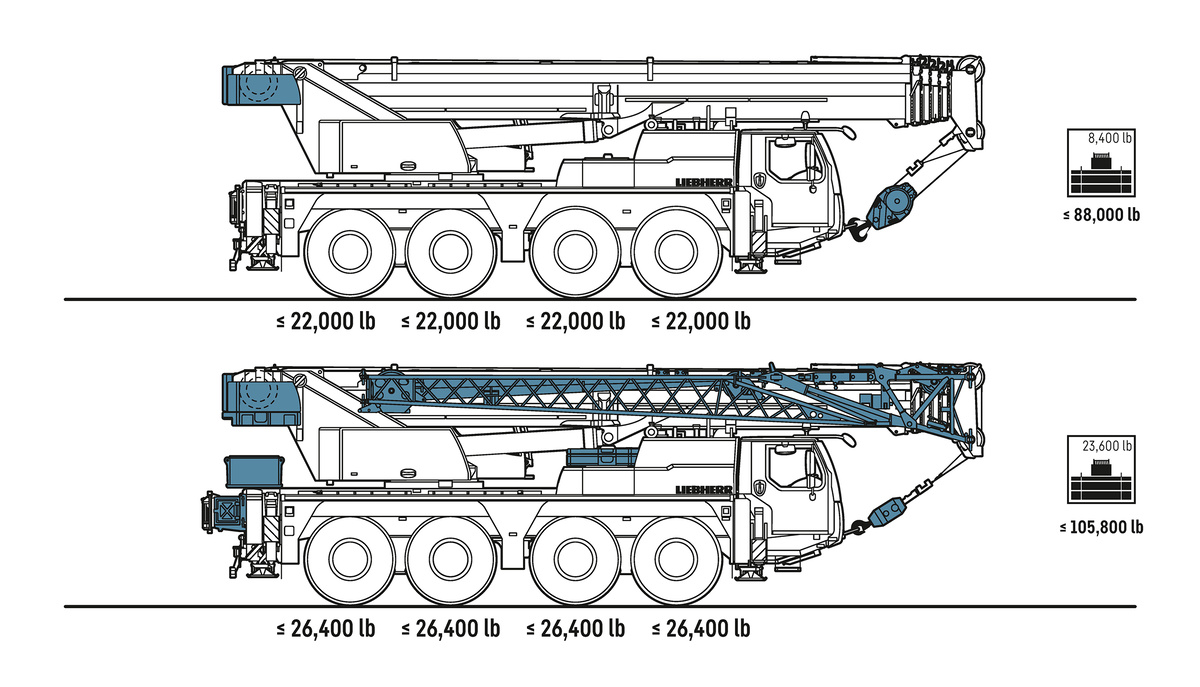

Driving conditions On-road driving

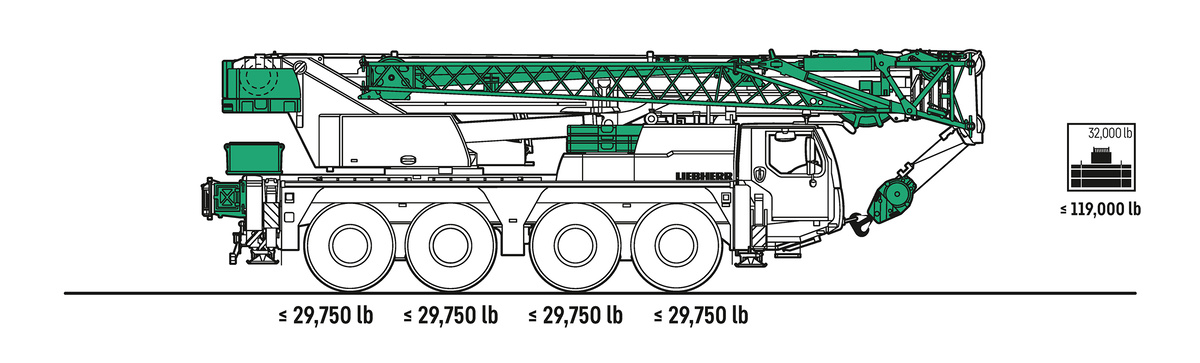

Jobsite driving
|
