The K3VG series are variable displacement axial piston pumps of swash plate design for industrial equipment.
The K3VG series are available in size ranging from 63 to 560 cm3/rev with various control options including a highly precise electro-hydraulic servo regulator "ILIS".
Specifications
| Model | K3VG 63 |
K3VG 112 |
K3VG 180 |
K3VG 280 |
K3VG 180DT |
K3VG 280DT |
|
| Displacement (cm3) | 63 | 112 | 180 | 280 | 360 | 560 | |
| Pressure (MPa) | Rated | 34.3 | |||||
| Peak | 39.2 | ||||||
| Max Self Priming Speed (min-1) | 1800 | 1200 | 1800 | 1200 | |||
| Weight (approx.) (kg) | 48 | 68 | 86 | 160 | 160 | 300 | |

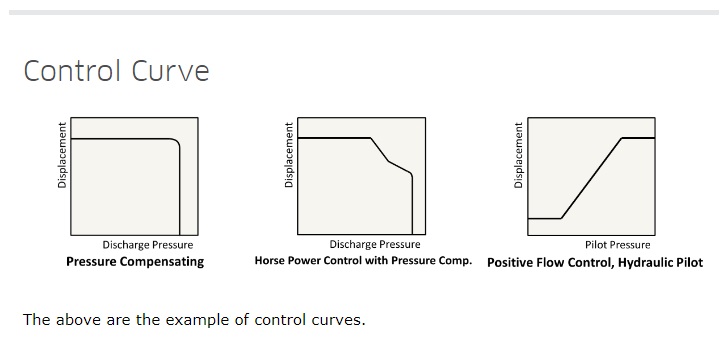

Control Curve
