Axial Piston Pumps (Open Loop) K7VG series

Tổng quan

Features

  • High Pump Efficiency
  • Low Noise
  • High Reliability
  • Compatible with fire-resistant fluid
  • Long Life
  • High rated pressure

The K7VG series are variable displacement axial piston pumps of swash plate design for heavy duty industrial equipment such as steel making plant and press machinery.
With the Kawasaki's latest technologies for improving efficiency and lowering noise, they achieve high pump efficiency and low noise.
The adoption of heavy duty bearings has achieved long life.

Specifications

Model K7VG180 K7VG265 K7VG500
Displacement (cm3) 180 270 560
Pressure (MPa) Rated 35 45
Peak 40 50
Max Self Priming Speed (min-1) 1800 1600 1350
Weight (approx.) (kg) 150 215 560

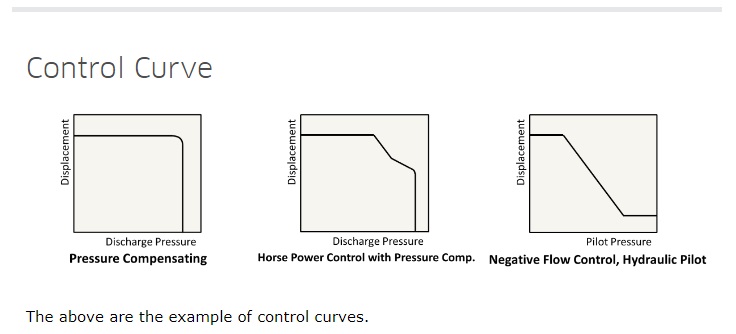

Control Curve

Applications
