Axial Piston Pumps (Open Loop) K7V series

Tổng quan


  • High Pump Efficiency
  • Low Noise
  • High Reliavility
  • High Power Density

The K7V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc.
With the Kawasaki's latest technologies for improving efficiency and lowering noise, they achieve the world's top-level pump efficiency and low noise which contribute to energy saving on applications and comfortable working environment.
A long life is obtained by adopting large capacity of bearing and thicker shaft which reduces the load on the edge of bearing rollers.
Power density is 1.5 times higher than K3V series.


Model K7V63 K7V125 K7V140
Displacement (cm3) 63 125 140
Pressure (MPa) Rated 35
Peak 40
Max Self Priming Speed (min-1) 2650 2380 2200

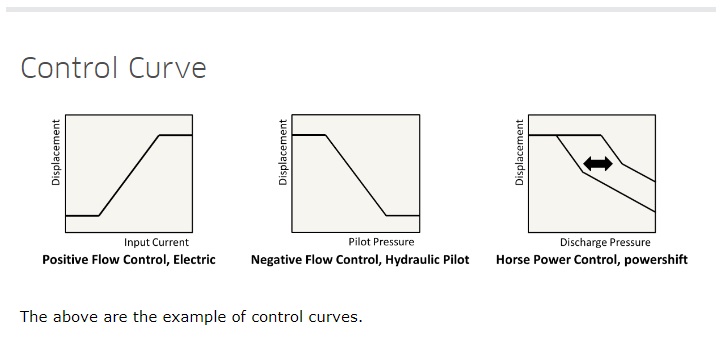

Control Curve
