The K3VLS series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications and industrial vehicles with medium pressure hydraulic systems.
The K3VLS pumps enable flexible configuration in a wide range of applications with their compact size and light weight design.
The K3VLS series pumps are available in size (rated displacement) ranging from 50 to 150 cm3/rev with various control options, such as load sensing, pressure cut-off, and horsepower controls.
Specifications
| Model | K3VLS 50*1 |
K3VLS 65 |
K3VLS 85 |
K3VLS 105 |
K3VLS 125*1 |
K3VLS 150*1 |
|
| Displacement (cm3) | 50 | 65 | 85 | 105 | 125 | 150 | |
| Pressure (MPa) | Rated | 28 | |||||
| Peak | 35 | ||||||
| Max Self Priming Speed (min-1) | 2700 | 2600 | 2500 | 2300 | 2200 | 2200 | |
| Mass (approx.) (kg) | 20 | 22 | 30 | 37 | 52 | 52 | |

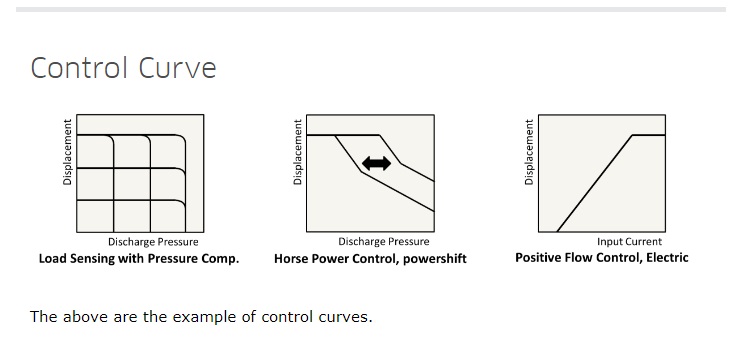

Control Curve
