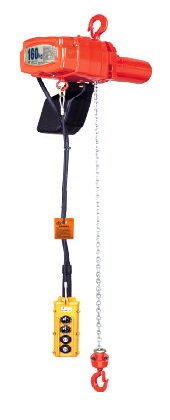

ALPHA type (3-phase) specification
| Type | Single-speed type | ||||||
| Model (For 200V-440V) * |
aC-015 | aC-025 | aC-05 | ||||
| Max. working load (kg) | 150 | 250 | 500 | ||||
| Motor output (W) | 550 | 550 | 550 | ||||
| Short-time rating (min) | 30 | 30 | 30 | ||||
| Repetition ratings |
Load time rate (%ED) | 30 or 40 | 30 or 40 | 30 or 40 | |||
| Max. starting frequency (times/h) |
1200 or 240 | 1200 or 240 | 1200 or 240 | ||||
| Rated current (A) | 3 | 4 | 4 | ||||
| Lifting speed (m/min) | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | |
| 9 | 11 | 9 | 11 | 9 | 11 | ||
| Standard lift (m) | 3 | 3 | 3 | ||||
| Headroom (mm) | 325 | 325 | 325 | ||||
| Push-button cord length (m) | 3 | 3 | 3 | ||||
| Load chain, diameter x pitch (mm) | 4x12 | 4x12 | 4x12 | ||||
| Net weight (kg) | 18 | 18 | 21.5 | ||||
*Specify the voltage you require.
1)A power source cable (2mm2 x 4 Core wires) 5m is included for 3phase.
2)Power supply voltage for operating the push-button switch is 24V 3phase.
3)500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
ALPHA type (Single-phase) specification
| Type | Single-speed type | ||||||||
| Model | For 100V-115V* | aS-006 | aS-01 | aS-016 | aS-025 | aS-05 | |||
| For 200V-230V* | aH-006 | aH-01 | aH-016 | aH-025 | aH-05 | ||||
| Max. working load (kg) | 60 | 100 | 160 | 250 | 500 | ||||
| Motor output (W) | 300 | 300 | 600 | 600 | 600 | ||||
| Short-time rating (min) | 25 | 25 | 25 | 25 | 25 | ||||
| Repetition ratings |
Load time rate (%ED) | 30 | 30 | 30 | 30 | 30 | |||
| Max. starting frequency (times/h) |
180 | 180 | 180 | 180 | 180 | ||||
| Rated current (A) | 6 [4] | 8 [5] | 12 [6] | 12 [6] | 12 [6] | ||||
| Lifting speed (m/min) | 13 | 13 | 15 | 10 | 5 | ||||
| Standard lift (m) | 3 | 3 | 3 | 3 | 3 | ||||
| Headroom (mm) | 325 | 325 | 325 | 325 | 415 | ||||
| Push-button cord length (m) | 3 | 3 | 3 | 3 | 3 | ||||
| Load chain, diameter x pitch (mm) | 4x12 | 4x12 | 4x12 | 4x12 | 4x12 | ||||
| Net weight (kg) | 14.5 | 14.5 | 16.5 | 16.5 | 20 | ||||
*Specify the voltage you require.
1). A power source cable (2mm2 x 3 Core wires) 5m is included for single phase.
2). Figure in [ ] shows that of aH type.
3). Power supply voltage for operating the push-button switch is 100V (or 200V) single phase.
4). 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
| Type | Variable-speed type | ||||||||
| Model | For 100V-115V* | aS-006 | aS-01 | aS-016 | aS-025 | aS-05 | |||
| For 200V-230V* | aH-006 | aH-01 | aH-016 | aH-025 | aH-05 | ||||
| Max. working load (kg) | 60 | 100 | 160 | 250 | 500 | ||||
| Motor output (W) | 300 | 300 | 600 | 600 | 600 | ||||
| Short-time rating (min) | 25 | 25 | 25 | 25 | 25 | ||||
| Repetition ratings |
Load time rate (%ED) | 30 | 30 | 30 | 30 | 30 | |||
| Max. starting frequency (times/h) |
180 | 180 | 180 | 180 | 180 | ||||
| Rated current (A) | 6 [4] | 8 [5] | 12 [6] | 12 [6] | 12 [6] | ||||
| Lifting speed (m/min) | 1-13 | 1-13 | 1-15 | 1-10 | 0.5-5 | ||||
| Standard lift (m) | 3 | 3 | 3 | 3 | 3 | ||||
| Headroom (mm) | 325 | 325 | 325 | 325 | 415 | ||||
| Push-button cord length (m) | 3 | 3 | 3 | 3 | 3 | ||||
| Load chain, diameter x pitch (mm) | 4x12 | 4x12 | 4x12 | 4x12 | 4x12 | ||||
| Net weight (kg) | 14.5 | 14.5 | 16.5 | 16.5 | 20 | ||||
*Specify the voltage you require.
1)A power source cable (2mm2 x 3 Core wires) 5m is included for single phase.
2)Figure in [ ] shows that of aH type.
3)Power supply voltage for operating the push-button switch is 100V (or 200V) single phase.
4)500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
| Type |
Dual-speed type |
|||||
| Model | For 100V-115V* |
aSB-006 |
aSB-01 |
aSB-016 |
aSB-025 |
aSB-05 |
| For 200V-230V* |
aHB-006 |
aHB-01 |
aHB-016 |
aHB-025 |
aHB-05 |
|
| Max. working load (kg) |
60 |
100 |
160 |
250 |
500 |
|
| Motor output (W) |
300 |
300 |
600 |
600 |
600 |
|
| Short-time rating (min) |
25 |
25 |
25 |
25 |
25 |
|
| Repetition ratings | Load time rate(%ED) |
30 |
30 |
30 |
30 |
30 |
| Max. starting frequency (times/h) |
180 |
180 |
180 |
180 |
180 |
|
| Rated current (A) |
6 [4] |
8 [5] |
12 [6] |
12 [6] |
12 [6] |
|
| Lifting speed m/min) |
Low-speed 5 |
Low-speed 4 |
Low-speed 5 |
Low-speed 4 |
Low-speed 2 |
|
| Standard lift (m) |
3 |
3 |
3 |
3 |
3 |
|
| Headroom (mm) |
325 |
325 |
325 |
325 |
415 |
|
| Push-button cord length (m) |
3 |
3 |
3 |
3 |
3 |
|
| Load chain, diameter x pitch (mm) |
4x12 |
4x12 |
4x12 |
4x12 |
4x12 |
|
| Net weight (kg) |
14.5 |
14.5 |
16.5 |
16.5 |
20 |
|
*Specify the voltage you require.
1)A power source cable (2mm2 x 3 Core wires) 5m is included for single phase.
2)Figure in [ ] shows that of aH type.
3)Power supply voltage for operating the push-button switch is 100V (or 200V) single phase.
4)500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
