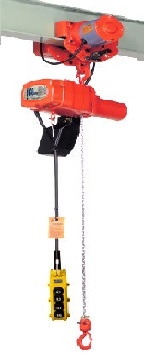

Specifications for 3-phase Electric Chain Hoist with Electric Trolley
| Type |
Single-speed type |
||||
| Model (For 200V-440V) |
aCM-015 |
aCM-025 |
aCM-050 |
||
| Max. working load (kg) |
150 |
250 |
500 |
||
| Headroom (mm) * |
426 |
426 |
516 |
||
| Standard lift (m) |
3 |
3 |
3 |
||
| Motor output (kW) |
0.55 |
0.55 |
0.55 |
||
| Lifting speed (m/min) | 50Hz |
9 |
9 |
4.5 |
|
| 60Hz |
11 |
11 |
5.5 |
||
| Traverse motor output (kW) |
0.3 |
0.3 |
0.4 |
||
| Traversing speed (m/min) | High-speed type standard) (50Hz/60Hz) |
20/24 |
20/24 |
20/24 |
|
| Low-speed type (50Hz/60Hz) |
10/12 |
10/12 |
10/12 |
||
| Traverse rail width (mm) |
75 100 125 |
75 100 125 |
75 100 125 |
||
| Minimum traverse turning radius (mm) |
900 |
900 |
1100 |
||
| Minimum height of traverse rail (mm) |
100 |
100 |
125 |
||
| Net weight (kg) |
36 |
36 |
39.5 |
||
1)See for the specifications for small electric chain hoist.
2)*The headroom slightly differs according to the size of the applicable traverse rail.
3)Use three-phase power source.
4)The power cord of 0.5m extending from the trolley (4-core: 1 pc for earth) is supplied.
5)Put the low-speed type "S" between the model symbol when specifying low traversing speed (example: aCMS-015); when there is no specification, the speed will be nomal (standard).
6)The three-phase traverse motor has E-class insulation, and the short time rating is 30 min.
Specifications and dimensions are subject to change without notice.
Specifications for Single-phase Electric Chain Hoist with Electric Trolley
| Type |
Single-speed type |
|||||
| Model | For 100V-115V |
aSM-006 |
aSM-01 |
aSM-016 |
aSM-025 |
aSM-050 |
| For 200V-230V |
aHM-006 |
aHM-01 |
aHM-016 |
aHM-025 |
aHM-050 |
|
| Max. working load (kg) |
60 |
100 |
160 |
250 |
500 |
|
| Headroom (mm) * |
426 |
426 |
426 |
426 |
516 |
|
| Standard lift (m) |
3 |
3 |
3 |
3 |
3 |
|
| Motor output (kW) |
0.3 |
0.3 |
0.6 |
0.6 |
0.6 |
|
| Lifting speed (m/min) |
13 |
13 |
15 |
10 |
5 |
|
| Traverse motor output (kW) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
| Traversing speed (m/min: 50Hz/60Hz) |
10/12 |
10/12 |
10/12 |
10/12 |
10/12 |
|
| Applicable traverse rail width (mm) |
75 100 125 |
75 100 125 |
75 100 125 |
75 100 125 |
75 100 125 |
|
| Minimum traverse turning radius (mm) |
1100 |
1100 |
1100 |
1100 |
1100 |
|
| Minimum height of traverse rail (mm) |
125 |
125 |
125 |
125 |
125 |
|
| Net weight (kg) |
32.5 |
32.5 |
34.5 |
34.5 |
38 |
|
1)See here for the specifications for small electric chain hoist.
2)*The headroom slightly differs according to the size of the applicable traverse rail.
3)The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4)The power cord of 0.5m extending from the trolley (3-core: 1 pc for earth) is supplied.
Specifications and dimensions are subject to change without notice.
| Type |
Variable-speed type |
|||||
| Model | For 100V-115V |
aSVM-006 |
aSVM-01 |
aSVM-016 |
aSVM-025 |
aSVM-050 |
| For 200V-230V |
aHVM-006 |
aHVM-01 |
aHVM-016 |
aHVM-025 |
aHVM-050 |
|
| Max. working load (kg) |
60 |
100 |
160 |
250 |
500 |
|
| Headroom (mm) * |
426 |
426 |
426 |
426 |
516 |
|
| Standard lift (m) |
3 |
3 |
3 |
3 |
3 |
|
| Motor output (kW) |
0.3 |
0.3 |
0.6 |
0.6 |
0.6 |
|
| Lifting speed (m/min) |
1-13 |
1-13 |
1-15 |
1-10 |
0.5-5 |
|
| Traverse motor output (kW) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
| Traversing speed (m/min: 50Hz/60Hz) |
10/12 |
10/12 |
10/12 |
10/12 |
10/12 |
|
| Applicable traverse rail width (mm) |
75 100 125 |
75 100 125 |
75 100 125 |
75 100 125 |
75 100 125 |
|
| Minimum traverse turning radius (mm) |
1100 |
1100 |
1100 |
1100 |
1100 |
|
| Minimum height of traverse rail (mm) |
125 |
125 |
125 |
125 |
125 |
|
| Net weight (kg) |
33 |
33 |
35 |
35 |
38.5 |
|
1)See here for the specifications for small electric chain hoist.
2)*The headroom slightly differs according to the size of the applicable traverse rail.
3)The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4)The power cord of 0.5m extending from the trolley (3-core: 1 pc for earth) is supplied.
Specifications and dimensions are subject to change without notice.
| Type |
Dual-speed type |
|||||
| Model | For 100V-115V |
aSBM-006 |
aSBM-01 |
aSBM-016 |
aSBM-025 |
aSBM-050 |
| For 200V-230V |
aHBM-006 |
aHBM-01 |
aHBM-016 |
aHBM-025 |
aHBM-050 |
|
| Max. working load (kg) |
60 |
100 |
160 |
250 |
500 |
|
| Headroom (mm) * |
426 |
426 |
426 |
426 |
516 |
|
| Standard lift (m) |
3 |
3 |
3 |
3 |
3 |
|
| Motor output (kW) |
0.3 |
0.3 |
0.6 |
0.6 |
0.6 |
|
| Lifting speed (m/min) |
Low:5 |
Low:4 |
Low:5 |
Low:4 |
Low:2 |
|
| Traverse motor output (kW) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
| Traversing speed (m/min: 50Hz/60Hz) |
10/12 |
10/12 |
10/12 |
10/12 |
10/12 |
|
| Applicable traverse rail width (mm) |
75 100 125 |
75 100 125 |
75 100 125 |
75 100 125 |
75 100 125 |
|
| Minimum traverse turning radius (mm) |
1100 |
1100 |
1100 |
1100 |
1100 |
|
| Minimum height of traverse rail (mm) |
125 |
125 |
125 |
125 |
125 |
|
| Net weight (kg) |
32.5 |
32.5 |
34.5 |
34.5 |
38 |
|
1)See here for the specifications for small electric chain hoist.
2)*The headroom slightly differs according to the size of the applicable traverse rail.
3)The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4)The power cord of 0.5m extending from the trolley (3-core: 1 pc for earth) is supplied.
Specifications and dimensions are subject to change without notice.
